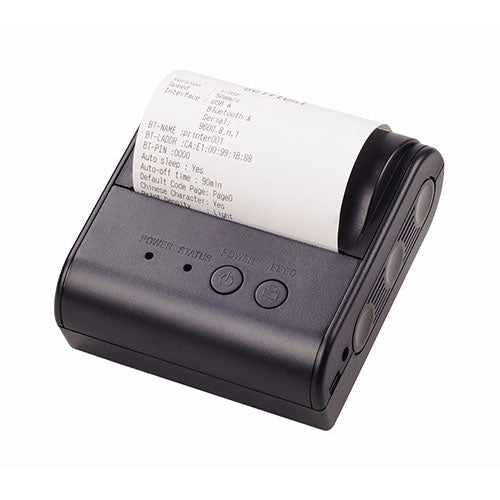

XPrinter XP-P800 Mobile Thermal Receipt printer

FEATURES
● High quality printing
● Easy to operate
● Easy paper loading
● 80mm paper width
● Portable
● Support GB18030

SPECIFICATIONS

PRINTING
Printing method
Direct thermal
Printing width
72mm
Column capacity
8dots/mm, 384dots/line
Printing speed
50mm/s
Interface
USB+Serial+Bluetooth
Printing paper
79.5±0.5mm×φ40mm
Line spacing
3.75mm (Adjustable by commands)
Column number
58mm paper: Font A - 32 columns/Font B - 42 columns/ Chinese,traditional Chinese - 16 columns
Character size
ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）

BARCODE CHARACTER
Extension character
sheet
PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types
1D Barcode: UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/ CODABAR/ITF/CODE39/CODE93/CODE128
2D Barcode: QR CODE/PDF417

BUFFER
Input buffer
32k bytes
NV Flash
64k bytes

POWER
Power supply
Input：AC 110V/240V, 50～60Hz
Power source
Output：DC 9V-2A

PHYSICAL CHARACTERISTICS
Weight
0.26KG
Dimension
108.5×105×48mm(D x W x H)

ENVIRONMENTAL REQUIREMENTS
Work environment
Temperature (0～45)  humidity(10～80%)
Storage environment
Temperature(-10～60℃) humidity(10～90%)

RELIABILITY
Printer head life
50KM
