Brand: X-Printer

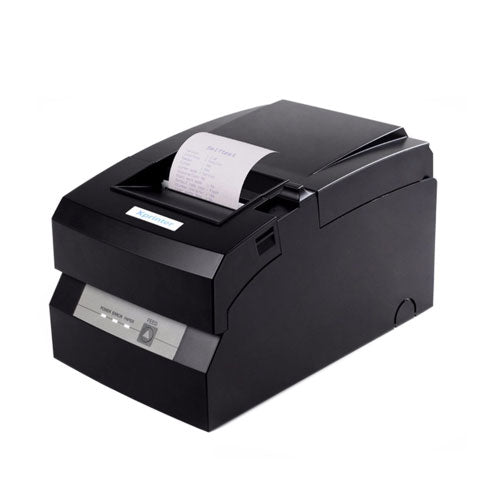

XPrinter XP-F76EC 9-Pin Serial Impact Dot-matrix Printing (Citizen print head)
XPrinter XP-F76EC 9-Pin Serial Impact Dot-matrix Printing (Citizen print head)
SKU:XP-F76EC
Regular price
₱14,760.00 PHP
Regular price
Sale price
₱14,760.00 PHP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Share
FEATURES
● Printing speed 4.5 line/second
● Support Chinese GB18030
● Transfer simplified/traditional Chinese by using commands
● Serial+Lan+USB
● 100MB Ethernet interface connection, transfer data efficiently
● Avoid order missing
● Black mark orientation
● Imported Citizen DP332 printing head
● Easy paper loading design
● Support cover open detection
View full details
● Printing speed 4.5 line/second
● Support Chinese GB18030
● Transfer simplified/traditional Chinese by using commands
● Serial+Lan+USB
● 100MB Ethernet interface connection, transfer data efficiently
● Avoid order missing
● Black mark orientation
● Imported Citizen DP332 printing head
● Easy paper loading design
● Support cover open detection
SPECIFICATIONS
PRINTING
Printing method
9-Pin serial impact dot-matrix printing
Print width
63.5mm
Column capacity
400 dots/line
Printing speed
4.5 line/s
Interface
Serial+USB+Lan
Printing paper
75.5±0.5mm×φ80mm(max)
Line spacing
4.23mm (Adjustable by commands)
Column number
76mm paper: Font A - 32 columns /Font B - 42 columns / Chinese,traditional Chinese - 16 columns
Character size
ANK，Font A: 1.6×3.1mm（9×9 dots） Font B: 1.2×3.1mm（7×9 dots）Chinese,traditional Chinese: 2.7×2.7mm（16×16 dots）
CUTTER
Printing method
9-Pin serial impact dot-matrix printing
Print width
63.5mm
Column capacity
400 dots/line
Printing speed
4.5 line/s
Interface
Serial+USB+Lan
Printing paper
75.5±0.5mm×φ80mm(max)
Line spacing
4.23mm (Adjustable by commands)
Column number
76mm paper: Font A - 32 columns /Font B - 42 columns / Chinese,traditional Chinese - 16 columns
Character size
ANK，Font A: 1.6×3.1mm（9×9 dots） Font B: 1.2×3.1mm（7×9 dots）Chinese,traditional Chinese: 2.7×2.7mm（16×16 dots）
CUTTER
Auto cutter
Full or partial ( Optional)
CHARACTER
Extension character
sheet
PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
POWER
Power adaptor
Input：AC 110V/220V, 50～60Hz
Power source
Output：DC 24V/2.5A
Cash drawer output
DC 24V/1A
PHYSICAL CHARACTERISTICS
Weight
2.2 KG
Dimensions
247×156×143mm (D×W×H)
ENVIRONMENTAL REQUIREMENTS
Work environment
Temperature (0～45) humidity(10～80%)
Storage environment
Temperature(-10～60℃) humidity(10～80%)
RELIABILITY
Cutter life
1million cuts
Printer head life
10 Million Lines
