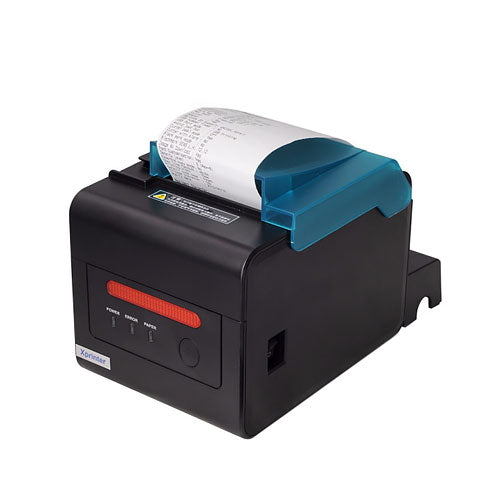

XPrinter XP-C260H Thermal Receipt Printer (Water & dust & oil proof)

FEATURES
●  Easy paper loading, waterproof, oil proof, dustproof design
●  Printing image and characters with high speed, the best printing quality and   reliable performance
●  Support GB18030 simplified Chinese, traditional Chinese, buyer''s language
●  Support printer states minitor function, control printers states at any time.
●  Full/Partial option, no paper jamming problem, multiple choice for customer
●  Support print prompt and error alarm
●  Driving high speed download printing mode, support linux system
●  Support black mark orientation
●  Compatible with EPSON ESC/POS
●  Support 256K bytes NV logo download store and print

SPECIFICATION

PRINTING
Printing method
Direct thermal
Print width
76mm
Column capacity
576 dots/line 512 dots/line
Printing speed
260mm/s
Interface
Serial+USB+Lan/WIFI+USB/Bluetooth+USB
Printing paper
79.5±0.5mm×φ80mm
Line spacing
3.75mm (Adjustable by commands)
Column number
80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/
Chinese,traditional Chinese - 21 columns or 24 columns
Character size
ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）

CUTTER
Auto cutter
Full or partial ( Optional)

BARCODE CHARACTER
Extension character
sheet
PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 / QR CODE

BUFFER
Input buffer
2048k bytes
NV Flash
256k bytes

POWER
Power adaptor
Input：AC 110V/220V, 50～60Hz
Power source
Output：DC 24V/2.5A
Cash drawer output
DC 24V/1A

PHYSICAL CHARACTERISTIC
Weight
1.78KG
Dimensions
198×148×138mm (D×W×H)

ENVIRONMENTAL REQUIREMENTS
Work environment
Temperature (0～45)  humidity(10～80%)
Storage environment
Temperature(-10～60℃) humidity(10～80%)

RELIABILITY
Cutter life
1million cuts
Printer head life
100KM
