UR4 Fixed UHF Reader

Chainway UR4 Fixed UHF Reader - NTC TYPE APPROVED

Product overview

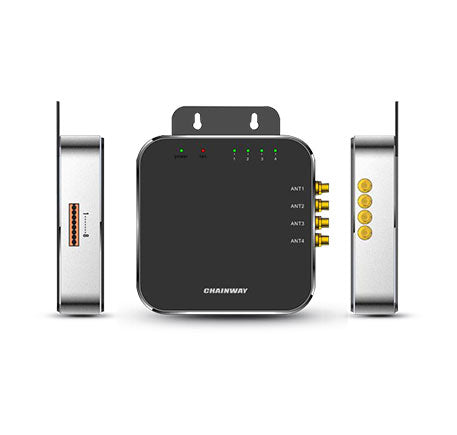

Chainway UR4 is a high-performance four-channel fixed UHF reader. The core module adopts the Impinj R2000 chip, and soon it will be available with a highly integrated and excellent performing E710 chip. With the high stability, excellent anti-electromagnetic interference capability, and better heat dissipation performance, the device fulfill the requirements for installation in various indoor & outdoor environments in diverse industries with strict RFID application standards such as warehouse management, archives, and library management, bank, clothing, and footwear retail, jewelry monitoring, watch industry, laundry, production line management, medical instrument cabinet, and vending machines.

Datasheet

Product parameters

• Frequency: （918～20MHz) NTC Type Approved Device
• Protocol: ISO18000-6B/6C,EPC G2
• RF power: 1W (30dBm, support +5~+30dBm adjustable), 2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.)

• Sensitivity: < -84dBm
• Read speed: 900+ tags/sec Max
• Processor: CM2000-4 module based on Impinj Indy R2000; CM710-4 module based on Impinj E710 (coming soon)

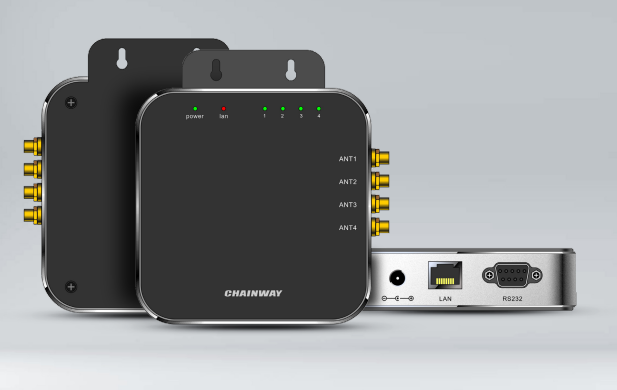

• Data Interface:  100M Ethernet Interface and RS232/RS485 Interface. 2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve)
• Power Supply:  DC+9V～+12V
• Working Temp.: -25～65℃
• SDK: Windows, Linux and Android
