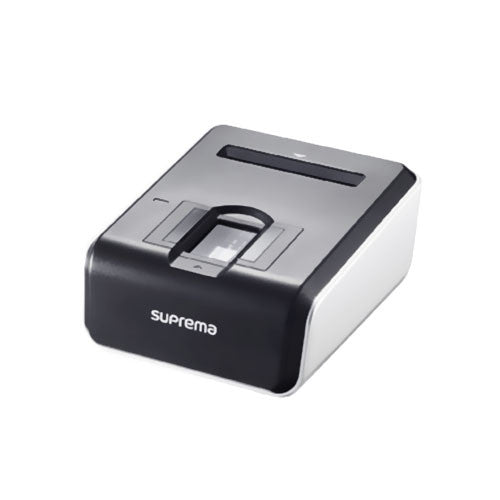

Suprema BioMini Combo Contact Smart Card

Suprema BioMini Combo has been designed to provide two factor authentication security solutions for authentication purposes. The scanner features Suprema’s latest slim optical sensor with large platen size for easier capturing.
Smart card reader functionality and advanced Live Finger Detection technology enhances security makes BioMini Combo a secure platform for developers.

Suprema BioMini Combo Contact Smart Card

Main	Sensor Type	Optical
	Resolution	500dpi / 256 gray
	Platen Size	18.0 x 25.4 mm (0.71” X 1.0”)
	Sensing Area	17.0 x 25.0 mm (0.67” X 0.99”)
	Image Size	320 x 480 pixels
	Compression Standards	WSQ
	Template Format	Suprema, ISO19794-2, ANSI-378
	Image Format	ISO19794-4
Contact Card Support	Contact Smart Card Reader	ISO 7816 Class A/B/C (5V, 3.0V, 1.8V) T=0, T=1 EMV2000 contact smart card with SAM Slot(optional, max 2x SAM)
Contactless Card Support	Contactless Smart Card Reader	ISO/IEC 14443 A&B, Mifare, Felica NFC Forum tag types (Jewel, Mifare Ultralight, Felica, Felica lite, Mifare, DesFire) EMV2000 Contactless Smart Card Frequency 13.56MHz +/- 7KHz Distance transaction: Up to 10cm Baud: 106/212/424/848 kbit/s
Interface	USB	2.0 CCID, PC/SC driver
Hardware	Operating Temperature	-10°C ~ 50°C
	Certification	CE, FCC, KC, UL, WHQL, USB-IF, WEEE
	Dimensions	95.7 x 114.8 x 52.6 mm (W x L x H)
Compatibility	Operating System	Windows Linux
