Brand: Signotec

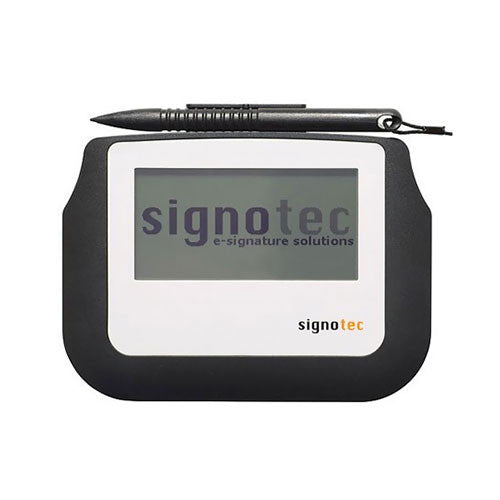

Signotec Sigma Σ WITHOUT Backlight HID 2M

Signotec Sigma Σ WITHOUT Backlight HID 2M

SKU:ST-ME105-2-U100

Regular price ₱18,120.00 PHP
Regular price Sale price ₱18,120.00 PHP
Sale Sold out
Tax included.

The LCD Signature Pad "signotec Sigma" is the little brother of the successful Signature Pad "Omega". The "signotec Sigma" is a device to signatures, fully developed by signotec and Made in Germany, with an unbeatable price-performance ratio. Measuring just 160 x 120 x 10 mm, it is extremely compact and therefore ideal for the mobile use. When used stationary it characterized with its flat design and the optional pen holder.

Signotec Sigma Σ WITHOUT Backlight HID 2M

The signotec Sigma signature pad sets a new standard for electronic signature capture devices, in terms of its size and the resolution of the display. Among the device’s unique features, are the outstanding display of graphics and text, the technical properties for digitising signatures, its extremely flat design and, above all, its smooth surface and a sensor flushed with the housing. This design enables signing to be highly ergonomic. The rounded sides also allow the heel of the hand to pass fluidly from the device to the table without disrupting the signing process.

The high sensor rate also allows for "swinging" signatures, without the user inadvertently reaching the limits of the sensor. This is vital to ensure that the signature is captured naturally and securely. Furthermore, graphical and textual information can be displayed, which often plays an important role in stationary use. As a result, the pad is also an inexpensive alternative for stationary applications.

The transfer of data from the pad to PC is encrypted, thereby it is not possible to spy on the biometric features of the signature. Since the electronics, firmware, drivers and applications have been developed by signotec itself, the hardware and software are matching perfectly.

* The signotec Sigma without backlight is the best choice when it comes to well-lit areas and the cheapest option is preferred.

Display

4" (10,5 cm) b/w Display with or without backlight

Active Signing Area

100 x 50 mm

Dimensions

160 x 120 x 10 mm

Text-Display

Unlimeted fonts and sizes

Grafik-Display

Any graphics up to 320 x 160 pixel

Navigation

Unlimited screens, Hot-Spots (buttons) and Scroll-Function

Security

AES-Encryption, RSA-signing. Signatures biometrics RSA-Encryption inside the pad.

Connection

USB (HID, no driver installation required)

Terminalserver

Yes. Optinal with internal virtual USB-Seriell-Converter (FTDI)

Internal Samplingrate

6000 Hertz

External Samplingrate

500 Hertz

Resolution

1040 dpi, not interpolated

Pen

No special pen, cheap replacement

Sensor

Scratch resistant surface

Warranty

2 Years
