Brand: Signotec

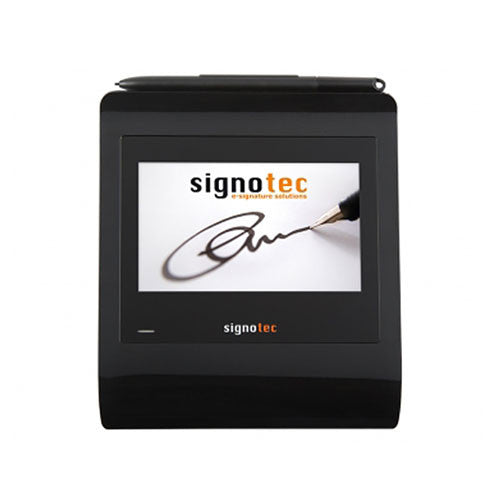

Signotec Gamma Γ Full Colour TFT and ERT-Sensor
Signotec Gamma Γ Full Colour TFT and ERT-Sensor
SKU:ST-GERT-3-U100
Couldn't load pickup availability
Share
The LCD Signature Pad „signotec Gamma“ is already the fourth Signature Pad for capturing handwritten electronic signatures, which was completely independently developed and which combines over 15 years of development, experience and competence. With external dimensions of 145 x 177 x 12 mm it is very compact and sets new standards in design and functionality. This device provides the ideal platform for a robust customer-facing eSignature architecture.
The ultra-flat Signature Pad is convincing with its innovative sensor surface made of special toughened glass with ER-Technology, as well as its high-resolution full-colour display, which makes the excellent display of graphic and text information possible. The ER-Technology is suitable for on-screen hand writing, it is only sensitive to the ERT-Stylus, not influence by hand touch, no erroneous input.
The ERT (electromagnetic resonance technology) implements a powerful non-contact handwriting input guarantee an outstanding quality of the signature capturing on the pad – with the particularity, that from now on even movements of the pen in mid-air can be captured. This special batteryless pen with exchangeable tips is capturing 1.024 pressure stages. The signotec Gamma's construction ensures an extremely long service life of 30 million signatures, and unbeatable durability with the highest security.
Technical Specification
Display |
5" (12,5 cm) TFT-Display with 16,8 Mio. colours |
Active signing area |
108 x 65 mm |
Dimensions |
12 x 177 x 145 mm |
Text display |
All fonts and sizes |
Graphic display |
All graphics up to 800 x 480 Pixel |
Memory |
Internal memory for 10 images, which can be used for static content (quick rotation between diffrent pages) and slideshows |
Navigation |
Unlimited number of screens and Hot-Spots (buttons). Scroll function |
Security |
AES-encryption, RSA-encryption of the biometric data inside the pad |
Connection |
HID-USB 2.0. Fullspeed (12 MBit/s) and WinUSB Highspeed (460 Mbit/s), optional virtual COM-Port |
Terminalserver |
Yes. Version with int. virt. USB to serial converter (FTDI) |
External sampling rate |
500 Hertz, 4D samples |
Resolution |
2400 x 2909 ppi, not interpolated |
Pen |
Battery-free pen with exchangeable tip |
Sensor |
Hardened sensor glas surface with ER-Technology |
Warranty |
2 years |
