Brand: Postek

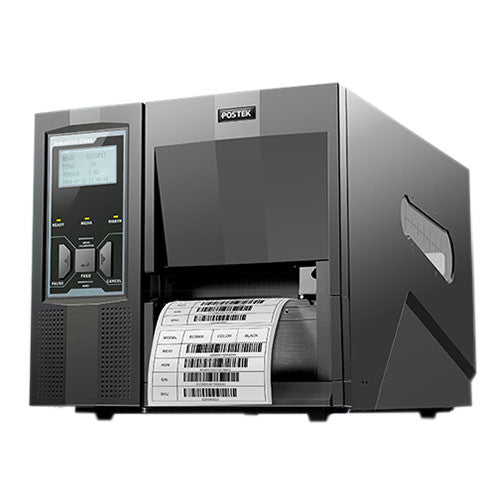

Postek I300 INDUSTRIAL
Postek I300 INDUSTRIAL
SKU:I300
Regular price
₱69,865.20 PHP
Regular price
Sale price
₱69,865.20 PHP
Unit price
/
per
Share
Features
Designed for the budget-minded, I Series supports many industrial applications at an affordable price.
Fixed chassis frame and all-metal construction fulfils strong structure that supports heavy printing workloads.
National patented “Up/Down Reflective Media Sensors” and precisely designed mechanism work together to ensure accurate media detection.
Specification
Model I300
Printing Method Thermal Transfer
Printing Resolution 300 dpi
Max Printing Speed 6 ips (152.4 mm/s)
Max Printing Width 4.17″ (106 mm)
Max Printing Length 157″ (4000 mm)
Memory 8 MB FLASH ROM, 16 MB SDRAM
Media
Width: 4.56″(116 mm) max. Width: 4.56″(116 mm) max., 0.98″(25mm) min.
0.79″(20 mm) min.
OD: 8″(203.2 mm) max. OD: 8″(203.2 mm) max. ID: 3″(76.2 mm) min.
ID: 1.5″(38 mm) min.
Media Thickness 0.0024″ (0.06 mm) ~ 0.012″ (0.305 mm), including liner
Ribbon Ribbon roll: OD: 3.3″(84 mm) max., ID: 1″(25.4 mm) min.
Max width: 4.65″(118 mm), Max length: 1968’ (600 M), Ink side: both In and Out. (12.7 mm)
Max width: 4.3″(110 mm); Max length: 360’ (110 M)
Media Sensor Up&Down Reflective (Adjustable) / Transmissive (Adjustable)
Fonts PPL-E: Five built-in dot matrix ASCII fonts, Downloadable TrueType Fonts fonts
PPL-Z: Seven built-in dot matrix ASCII fonts and one scalable font, Downloadable TrueType Fonts
Bar Code Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5,
UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
2D Barcode: MaxiCode, PDF417, Data matrix, QR Code, etc.
Interfaces RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB HOST, Centronics Parallel
Power Rating 110/220 VAC ±10%, 50/60 Hz
Weight 15 kgs
Dimensions W 286 mm x D 448 mm x H 280 mm
Operating Environment Temperature: 32°F ~ +104°F (0℃~ 40℃ ),
Relative humidity: 5% ~ 85% non condensing
Storage Environment Temperature: -40°F ~ +140°F (-40℃ ~ 60℃),
Relative humidity: 5% ~ 85% non condensing
View full details
Designed for the budget-minded, I Series supports many industrial applications at an affordable price.
Fixed chassis frame and all-metal construction fulfils strong structure that supports heavy printing workloads.
National patented “Up/Down Reflective Media Sensors” and precisely designed mechanism work together to ensure accurate media detection.
Specification
Model I300Printing Method Thermal Transfer
Printing Resolution 300 dpi
Max Printing Speed 6 ips (152.4 mm/s)
Max Printing Width 4.17″ (106 mm)
Max Printing Length 157″ (4000 mm)
Memory 8 MB FLASH ROM, 16 MB SDRAM
Media
Width: 4.56″(116 mm) max. Width: 4.56″(116 mm) max., 0.98″(25mm) min.
0.79″(20 mm) min.
OD: 8″(203.2 mm) max. OD: 8″(203.2 mm) max. ID: 3″(76.2 mm) min.
ID: 1.5″(38 mm) min.
Media Thickness 0.0024″ (0.06 mm) ~ 0.012″ (0.305 mm), including liner
Ribbon Ribbon roll: OD: 3.3″(84 mm) max., ID: 1″(25.4 mm) min.
Max width: 4.65″(118 mm), Max length: 1968’ (600 M), Ink side: both In and Out. (12.7 mm)
Max width: 4.3″(110 mm); Max length: 360’ (110 M)
Media Sensor Up&Down Reflective (Adjustable) / Transmissive (Adjustable)
Fonts PPL-E: Five built-in dot matrix ASCII fonts, Downloadable TrueType Fonts fonts
PPL-Z: Seven built-in dot matrix ASCII fonts and one scalable font, Downloadable TrueType Fonts
Bar Code Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5,
UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
2D Barcode: MaxiCode, PDF417, Data matrix, QR Code, etc.
Interfaces RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB HOST, Centronics Parallel
Power Rating 110/220 VAC ±10%, 50/60 Hz
Weight 15 kgs
Dimensions W 286 mm x D 448 mm x H 280 mm
Operating Environment Temperature: 32°F ~ +104°F (0℃~ 40℃ ),
Relative humidity: 5% ~ 85% non condensing
Storage Environment Temperature: -40°F ~ +140°F (-40℃ ~ 60℃),
Relative humidity: 5% ~ 85% non condensing
