Brand: Postek

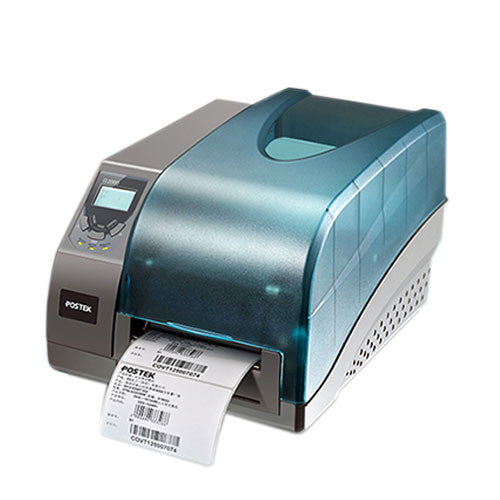

Postek G2000 LIGHT INDUSTRIAL Barcode Label Printer
Postek G2000 LIGHT INDUSTRIAL Barcode Label Printer
SKU:G2000
Regular price
₱38,278.80 PHP
Regular price
Sale price
₱38,278.80 PHP
Unit price
/
per
Share
Enjoy a desktop foot print with Industrial features and Performance
The optimized design of the printhead module, the innovative left-right structure and the patented convective heat transfer forge a highly reliable G series printer that is capable of handling wide ranges of consumables and heavy-duty printing work.
The G series printer carries all the advantages of conventional industrial label printers with added advantage of significant space and cost savings.
Benefits
The optimized structural design of the printhead module allows easy adjustment of printhead pressure and accurate time control of ribbon’s peeling at TPH. Thus the new G series printer is accomplished with strong compatibility between wide ranges of consumables and exceptional print quality, as well as reduced maintenance cost and enhanced cost-effectiveness.
The easy-operating assembly of ribbon tension adjustment ensures steady and reliable work performance.
With a 4-line graphical LCD display, all printer status is clearly demonstrated during standalone printing.
One-piece chassis, strengthened in every side, providing high quality and reliability. Left & Right structure design, completely separate the central control system from the operational area, making it much easier to operate and maintain.
National patented ‘’Convective Heat Transfer’’ technology always ensures a cool working temperature, even when printing 7×24.
All rotating parts are supported by ball bearings or fixed bearings, thereby eliminating wear caused from direct contact with plastic.
Model G2000
Printing Method Thermal Transfer
Printing Resolution 203 dpi
Max Printing Speed 6 ips (153 mm/s)
Max Printing Width 4.25″(108 mm
Max Printing Length 315″(8000 mm)
Memory 8 MB FLASH ROM, 16 MB SDRAM
Media
Width: 4.72” (120 mm) max., 0.98″(25 mm) min.
Supply roll: OD 4.49″(114 mm) max., ID 1″(25.4 mm) min.
Thickness: 0.003″~ 0.006″(0.08 ~ 0.15 mm), including liner
Ribbon Width: 4.3″(110 mm) max., Length: 984.25′ (300 m) max.,
OD 2.75″(70 mm) max., ID 1″(25.4 mm) (110 M)
Media Sensor Reflective (multiple mounting positions) / Transmissive (Adjustable)
Fonts Five built-in ASCII fonts, Downloadable TrueType fonts
Bar Code Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5,
UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
2D Barcode: MaxiCode, PDF417, Data matrix, QR Code, etc.
Interfaces USB DEVICE 2.0, RS-232 Serial
Power Rating 24 VDC 4.0A
Weight 3.5 kgs
Dimensions W 8.3″(210 mm) x D 10″(255 mm) x H 5.9″(150 mm)
Operating Environment Temperature: 32°F ~ +104°F (0℃~ 40℃ ),
Relative humidity: 5% ~ 85% non condensing
Storage Environment Temperature: -40°F ~ +140°F (-40℃ ~ 60℃),
Relative humidity: 5% ~ 85% non condensing
Accessories Standard Item: External Media Stand;
Optional Items: Peeler, External Rewinder, External Media Stand, Rotary Cutter,
Centronics Parallel and Media Guide Adapter
View full details
The optimized design of the printhead module, the innovative left-right structure and the patented convective heat transfer forge a highly reliable G series printer that is capable of handling wide ranges of consumables and heavy-duty printing work.
The G series printer carries all the advantages of conventional industrial label printers with added advantage of significant space and cost savings.
Benefits
The optimized structural design of the printhead module allows easy adjustment of printhead pressure and accurate time control of ribbon’s peeling at TPH. Thus the new G series printer is accomplished with strong compatibility between wide ranges of consumables and exceptional print quality, as well as reduced maintenance cost and enhanced cost-effectiveness.
The easy-operating assembly of ribbon tension adjustment ensures steady and reliable work performance.
With a 4-line graphical LCD display, all printer status is clearly demonstrated during standalone printing.
One-piece chassis, strengthened in every side, providing high quality and reliability. Left & Right structure design, completely separate the central control system from the operational area, making it much easier to operate and maintain.
National patented ‘’Convective Heat Transfer’’ technology always ensures a cool working temperature, even when printing 7×24.
All rotating parts are supported by ball bearings or fixed bearings, thereby eliminating wear caused from direct contact with plastic.
Specification
Model G2000
Printing Method Thermal Transfer
Printing Resolution 203 dpi
Max Printing Speed 6 ips (153 mm/s)
Max Printing Width 4.25″(108 mm
Max Printing Length 315″(8000 mm)
Memory 8 MB FLASH ROM, 16 MB SDRAM
Media
Width: 4.72” (120 mm) max., 0.98″(25 mm) min.
Supply roll: OD 4.49″(114 mm) max., ID 1″(25.4 mm) min.
Thickness: 0.003″~ 0.006″(0.08 ~ 0.15 mm), including liner
Ribbon Width: 4.3″(110 mm) max., Length: 984.25′ (300 m) max.,
OD 2.75″(70 mm) max., ID 1″(25.4 mm) (110 M)
Media Sensor Reflective (multiple mounting positions) / Transmissive (Adjustable)
Fonts Five built-in ASCII fonts, Downloadable TrueType fonts
Bar Code Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5,
UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
2D Barcode: MaxiCode, PDF417, Data matrix, QR Code, etc.
Interfaces USB DEVICE 2.0, RS-232 Serial
Power Rating 24 VDC 4.0A
Weight 3.5 kgs
Dimensions W 8.3″(210 mm) x D 10″(255 mm) x H 5.9″(150 mm)
Operating Environment Temperature: 32°F ~ +104°F (0℃~ 40℃ ),
Relative humidity: 5% ~ 85% non condensing
Storage Environment Temperature: -40°F ~ +140°F (-40℃ ~ 60℃),
Relative humidity: 5% ~ 85% non condensing
Accessories Standard Item: External Media Stand;
Optional Items: Peeler, External Rewinder, External Media Stand, Rotary Cutter,
Centronics Parallel and Media Guide Adapter
