Nordson NE-1200 Shear Magnetic Lock 600Kg (1200lbs)
Nordson NE-1200 Shear Magnetic Lock 600Kg (1200lbs)
SKU:NE-1200
Couldn't load pickup availability
Share

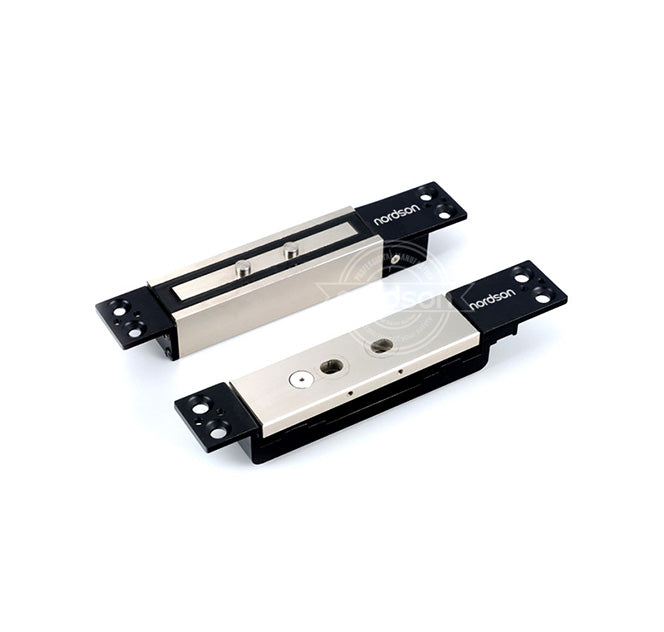

Nordson NE-1200 Shear Magnetic Lock 600 Kg(1200lbs)
Armature Plate: 182L*30W*24H(mm)
Power Supply: 12V/24V DC
Power Consumption(Operation current: 900mA;
Standby Current: 220mA@12VDC / 190mA@24VDC)
Shear holding force: 2600lbs (1200 Kg)
Built-in control board with door open delay function
Lock repeatedly when incomplete locking occurred
Weight: 1.3kg
SPECIFICATION
| Holding Force | MAX 900kg(2000Lbs) |
| Lock Status Sensors | Dry contact NO,NC,COM |
| Rated Operating Voltage | 12/24VDC |
| Current consumption | 12V/220mA 24V/190mA |
| Optional Functions | Relock Delay Timer,Buzzer |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10～+55℃(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |
| Magnets Dimensions(L x W x D) | 182L*30W*25H(mm) |
| Armature Plate Dimensions(L x W x D) | 182L*30W*24H(mm) |
| Weight in kg | 1.3kg |
NE-1200,Embedded-mounted Shear Magnetic Lock,single door shear lock,integrated design without external machine board,volume is much smaller,Stable performance,the intelligent microcomputer control system,can identify the locked state automatically,when improper locked,it can repeat locks automatically,to ensure success.Suit for glass door,wodden door,metal door,fire doors,all kinds of doors,lock body was embedded into the middle or above of the door frame,use magnetic force to catch up door leaf,unique double locks plug-in design,safety coefficient is higher.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special residual magnetic design makes automatic access control safer and more convenient.
