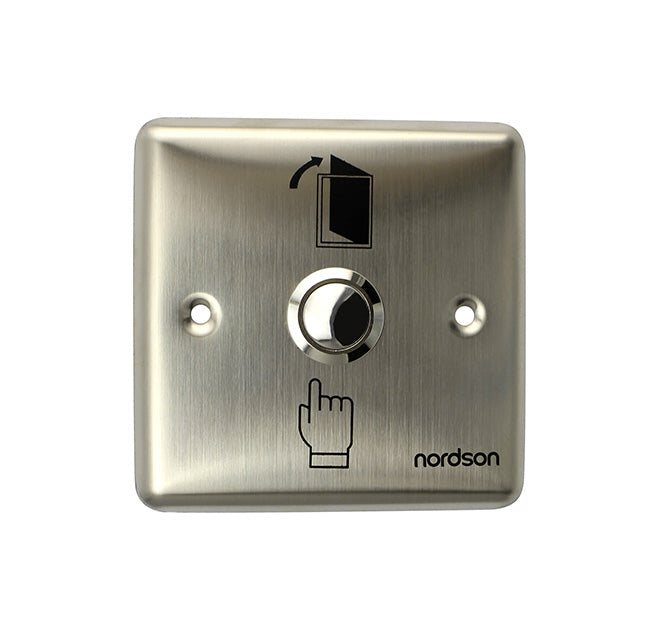

Nordson NF-80 Exit Push Button (Stainless steel)

Product Description

Nordson NF-80 Exit Push Button (Stainless steel)

◆NF-80 Exit Push Button(Stainless steel)
◆NF-80S Exit Push Button(Night Luminous)
Rating: 3A@36VDC Max
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Color: White, Blue (luminescence)
Output Contact: NO\COM (NC\NO\COM is option)
Dimensions: 86*86*20(mm)
Weight: 0.1kg



Sku: NF-80
Vendor: Nordson
₱557.00
Maximum quantity available reached.

SPECIFICATION

Model
NF-80 Push Button Switches
NF-80S Push Button Switches (with Night Luminous)
Material SUS304 Stainless steel Panel, Steel Button
Current Rating 3A@36VDC Max
Output Contact NO,COM Output
Optional Functions
NO/NC/COM Output
LED Nigh Available option for Blue,Green or Red
Mechanical Life 500000 Successful Test
Suitable for Door hollow door frame and electrical box use
Operating temp -10~+55℃(14-131F)
Operating Humidity 0-95% (Non- condensing)
Dimensions 86Lx86Wx20H(mm)
Weight 0.98kg



NF-80 Push Button Switches is a satin finish stainless steel access switch button, suitable for a variety of door frame, which is marketed after 500,000 successful test . It is with simple & ultra-narrow design, refined and elegant.The Exit Button is the Best Choice for Access Control Systems.
