Brand: Nordson

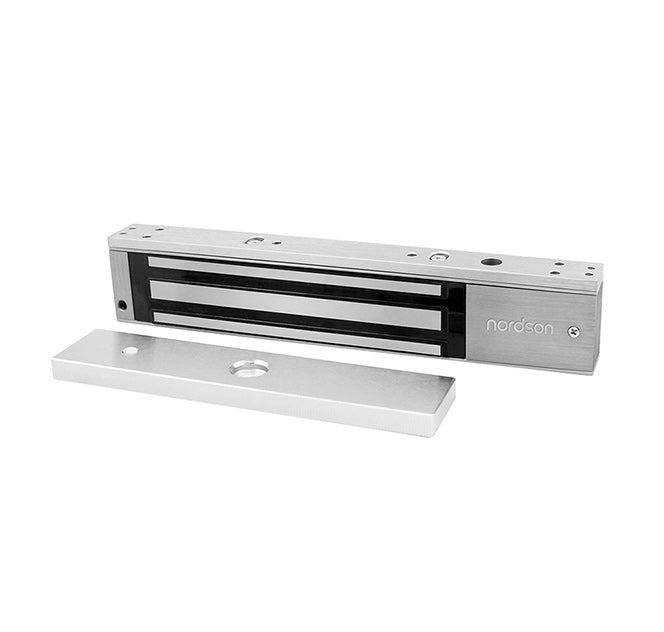

Nordson NE-280S(LED) EM Lock, LED, Positioning, 280kg (600Lbs)
Nordson NE-280S(LED) EM Lock, LED, Positioning, 280kg (600Lbs)
SKU:NE-280S(LED)
Couldn't load pickup availability
Share
Nordson NE-280S(LED) EM Lock, LED, Positioning, 280kg (600Lbs)
With LED and signal output
Voltage:DC12V or DC24V
Holding Force: 280kg (600Lbs)
Lock Size: 250L*48W*25H(mm)
Armature Plate:180L*38W*11H(mm)
Current Draw: 12V/500mA 24V/250mA
LED indicates the door is unlock,Green indicates the door is lock
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
Weight: 2.0kg
SPECIFICATION
| Holding Force | 280kg (600Lbs) |
| Lock Status Indicator | Red and Green, double color LED |
| Lock Status Sensors | NO,NC,COM |
| Rated Operating Voltage | 12/24VDC |
| Current consumption | 12V/500mA 24V/250mA |
| Optional Functions | Relock Delay Timer,Buzzer |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10～+55℃(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |
| Magnets Dimensions(L x W x D) | 250Lx48Wx25H(mm) |
| Armature Plate Dimensions(L x W x D) | 180L*38W*11H(mm) |
| Weight in kg | 2.0kg |
| CE-mark for building | Yes |
| Rohs-mark for building | Yes |
NE-280S,single door magnetic lock, with the door state signal feedback ,specially used to normal glass door,wooden door,metal door,fire doors, small doors,the most widely used.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.
Special Anti-residual magnetic design makes automatic access control safer and more convenient.
