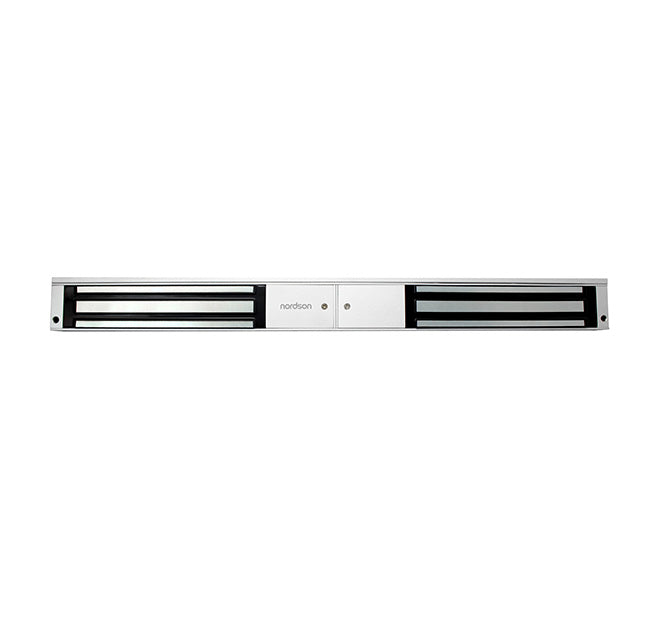

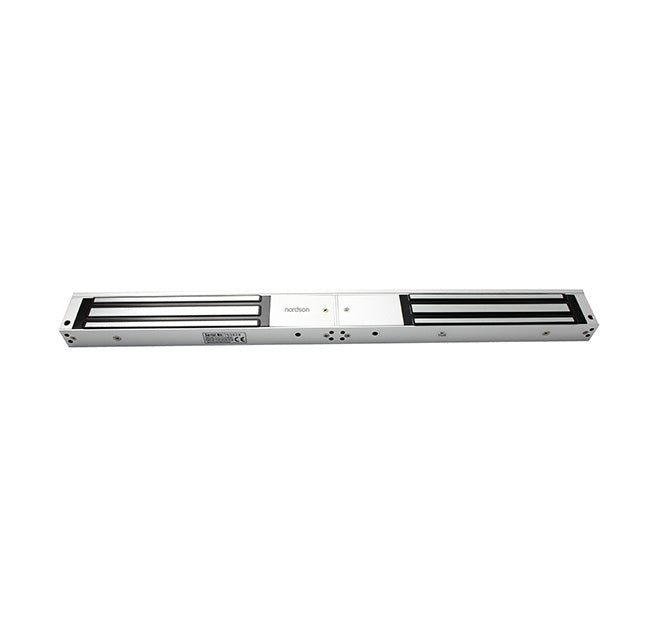

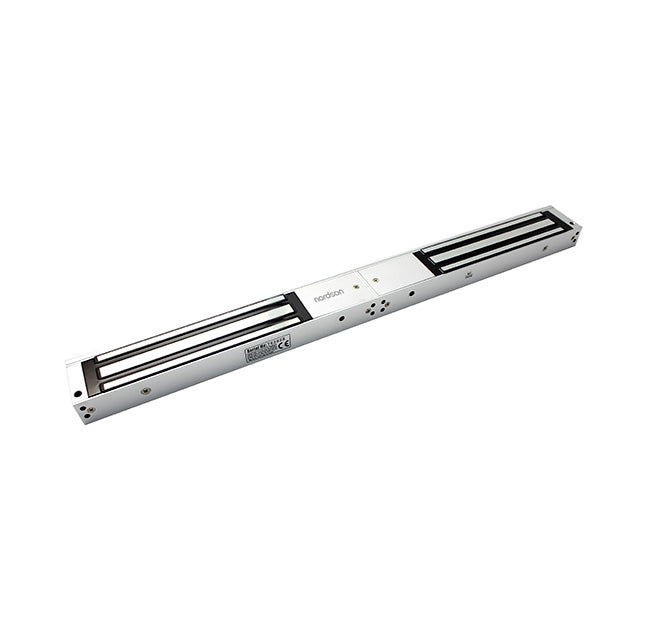

Nordson NE-280DS(LED) Double Electromagnetic Lock (600Lbs / 280 Kgs x 2)

Product Description

Nordson Double Electromagnetic Lock (600Lbs / 280 Kgs x 2)

LED display and door position detection output
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/480mAx2 24V/240mAx2
Lock Size: 500L*42W*25H(mm)
Armature Plate: 180L*32W*11H(mm)
With Timer & Buzzer Customization Available
Weight: 4kg
Sku: NE-280DS(LED)
Vendor: Nordson
₱4,866.96
Maximum quantity available reached.

SPECIFICATION

Holding Force 2x280kg (600Lbs)
Lock Status Indicator Red and Green, double color LED
Lock Status Sensors NO,NC,COM
Rated Operating Voltage 12/24VDC
Current consumption 12V/500mA 24V/250mA
Optional Functions Relock Delay Timer,Buzzer
Surface finish for magnet Zinc plated
Surface finish for armature plate Zinc plated
Ambient temperature in °C -10~+55℃(14-131F)
Suitable for Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) 500Lx42Wx25H(mm)
Armature Plate Dimensions(L x W x D) 180Lx32Wx11H(mm)
Weight in kg 4.0kg
NE-280DS, double door magnetic lock, with the door state signal feedback ,specially used to normal glass door,wooden door,metal door,fire doors, small doors,the most widely used.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.
Special Anti-residual magnetic design makes automatic access control safer and more convenient.
