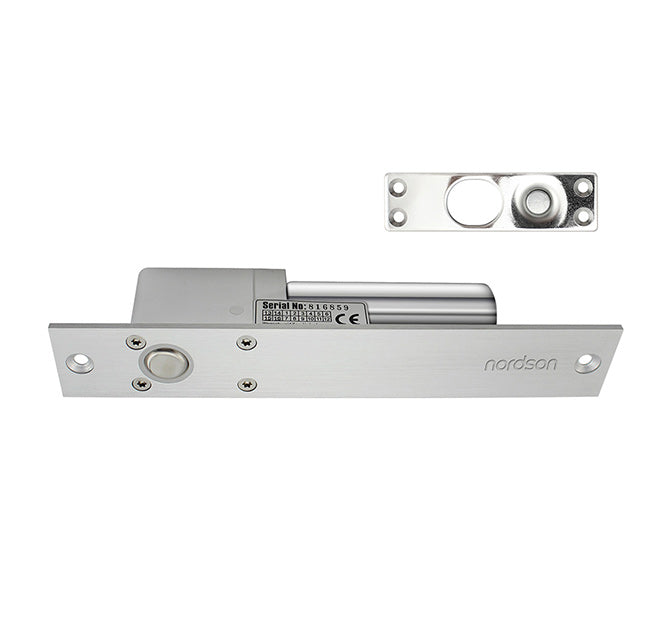

Nordson NI-100E 5 Line Electric Bolt Lock with Door State Detection Output

Product Description

NI-100E Electric Bolt Lock

Fail-safe type: Power to lock
Face Plate: 205L*35W*40H(mm)
Strike Plate : 90L*25W*2H(mm)
Bolt: 16mm (Throw) * 16mm(Diameter)
Fail Safe:Power to lock
Voltage: DC12V
Start Current: 960mA Standby Current: 130mA
Signal Output: door open or door close state detection output point,NC/COM
Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.

Weight: 0.65kg
Sku: NI-100E
Vendor: Nordson
₱2,080.36
Maximum quantity available reached.

SPECIFICATION

Fixing Embedded-mounted(vertical and horizontal)
Version Fail-unlocked
Standard Functions Low Temperature,Door Status Sensors,
Relock Delay Timer
Door Status Sensors Dry contact NC,COM
Push Button Contact Door Open Push Button Input Contact
Relock Delay Timer Relock Delay Timer
Optional Functions Lock Status Sensors,
Diameter dead bolt ø16mm,16mm
Shear strength 2000Lbs/800kg
Rated Operating Voltage DC 12V or 24V (Customization Available)
Start Current 960mA
Standby Current 130mA
Face place material High Aluminum
Surface Temp Low Temperature
Ambient temperature in °C -10°C - +55°C
Suitable for Wooden & Aluminum & Glass & Fireproof &Metal door
Face Plate Dimensions(L x W x D) 205Lx35WX40H(mm)
Strike Plate Dimensions(L x W x D) 90Lx25Wx2H(mm)
Weight 0.65kg



NI-100E is a multi function 5 lines Electric bolt lock with door status signal output and delay function, which is fail safe electric bolt lock that suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low temperature design, which makes access safer and durable.
