Mawari

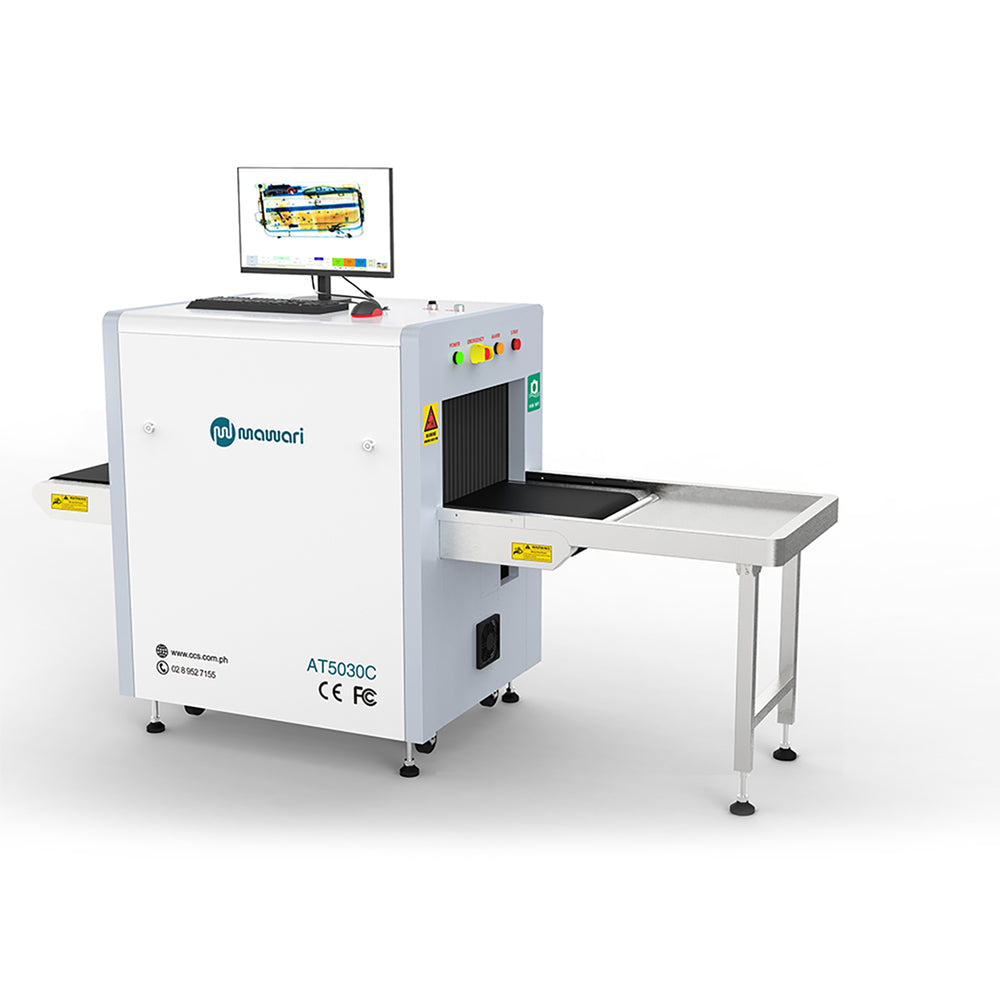

Mawari AT5030C X-Ray Baggage Scanner

Mawari AT5030C X-Ray Baggage Scanner

SKU:AT5030C

FEATURES

  • Multilingual operation
  • Automatic built in test and self diagnosis
  • Secure access key
  • Uninterruptable power supply for computer
  • Treat alert and material classification
  • Auto archiving
  • Energy saving design
  • Indication of the date and time
  • One key turn off
  • Drugs and explosive inspection

SPECIFICATIONS

Unit weight: 260 Kgs
Unit size: 1660(L)x746(W)x1165(H)
Gross weight:
 400kg
Packing size:
 179x87x137cm
Tunnel size:
 500(L)x300(W)
Conveyor speed: 0.22m/s
Conveyor height: 663mm
Conveyor max load:
 100kg
Penetration: 8mm steel
Wire resolution:
dia 0.0787mm copper wire (AWG40)
Penetration resolution: dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Power consumption:
max 500W
Noise: <60dB

X-RRAY GENERATOR (SINGLE)

Anode voltage:
 140KV
Ray direction: Upward

Cooling / Duty Cycle: Sealed oil cooling / 100 %

IMAGE SYSTEM

X-Ray sensor:
 L-shaped photodiode array, 12bit deep
Image process: 24bit real time processing, 4-color analysis, ID No., counts the number of bags.
Image display: 1024x1280 pixel; Image gray level: 4096
Image enhancement: 1-64 times enlargement continuity, color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organics/inorganics, local enhancement, pseudo color processing, edge enhancement, etc.
Explosives & narcotic detection: Suspicious organics highlight.
Suspicious alarm: Alarm and box lines the suspicious objects including hard to penetrate material, explosives, and drugs.
Threat Image Projection: Inserting fictional but realistic images of threat items into the baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability.
Image recall: 30 images recallable
Image archive: Up top 10,000 images stored automatically, enable transferring to USB  disk, and converting to jpg, bmp, and other general formats.
Options: Multiple remote applications available based on Ethernet LAN and windows platform.

OPERATING ENVIRONMENT

Operation temperature/ humidity: 5-40 / 0%-90% (non-condensing)

Storage temperature/ humidity: -20-60 / 10%-90% (non-condensing)

Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC, 110VAC, 120VAC, 2000VAC)
UPS: Options: 15mins, 30mins, 60mins

COMPUTERS AND OTHERS

Monitor:
High resolution color, 1280x1024 LCD Accord, 17in
RAM:
 1GB
Hard Disk:
500G
Keyboard: Special design

System: Embedded Linux operating system, multi core ARM, stable and reliable

Electric roller: Single-phase

COMPLIANCE

International: ISO19001, ISO14001, OHSMS18001
