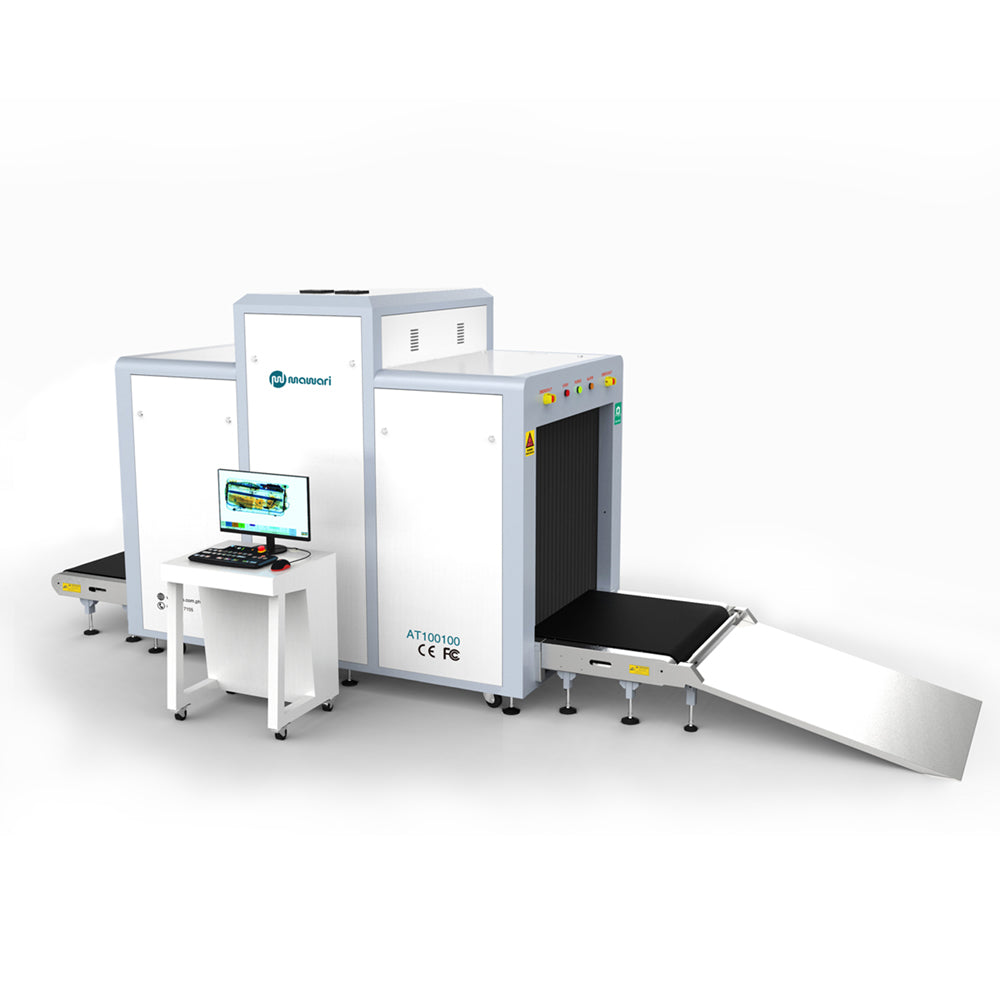

Mawari AT100100 X-Ray Baggage Scanner

FEATURES

• Multilingual operation

• Automatic built in test and self diagnosis
• Secure access key
• Uninterruptable power supply (UPS) for computer
• Treat alert and material classification
• Auto archiving
• Energy saving design

• One key turn off
• Drugs and explosive inspection
• Indication of the date and time
• Baggage counter
• Sens-Tech detection board and Hamamatsu detector

SPECIFICATIONS

Unit weight: 800 Kgs
Unit size: 3130(L)x1295(W)x1716(H)
Gross weight:
 1000kg
Packing size:
 Box #1: 242x143x198cm, Box #2: 122x90x141cm
Tunnel size:
 1000(L)x8300(W)
Conveyor speed: 0.22m/s
Conveyor height: 341mm
Conveyor max load:
 200kg
Penetration: 32mm steel
Wire resolution:
dia 0.102mm copper wire (AWG38)
Penetration resolution: dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Power consumption:
max 1KW
Noise: <60dB

X-RRAY GENERATOR (SINGLE)

Anode voltage:
 160KV
Ray direction: Downward

Cooling / Duty Cycle: Sealed oil cooling / 100 %

IMAGE SYSTEM

X-Ray sensor:
 L-shaped photodiode array, 12bit deep
Image process: 24bit real time processing, 4-color analysis, ID No., counts the number of bags.
Image display: 1024x1280 pixel; Image gray level: 4096
Image enhancement: 1-64 times enlargement continuity, color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organics/inorganics, local enhancement, pseudo color processing, edge enhancement, etc.
Explosives & narcotic detection: Suspicious organics highlight.
Suspicious alarm: Alarm and box lines the suspicious objects including hard to penetrate material, explosives, and drugs.
Threat Image Projection: Inserting fictional but realistic images of threat items into the baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability.
Image recall: 30 images recallable
Image archive: Up top 10,000 images stored automatically, enable transferring to USB  disk, and converting to jpg, bmp, and other general formats.
Options: Multiple remote applications available based on Ethernet LAN and windows platform.

OPERATING ENVIRONMENT

Operation temperature/ humidity: 5°C-40°C / 0%-90% (non-condensing)
Storage temperature/ humidity: -20°C-60°C / 10%-90% (non-condensing)
Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC, 110VAC, 120VAC, 2000VAC)
UPS: Optional

COMPUTERS AND OTHERS

Monitor:
2 17-inch LCD monitors, 1280x1024, one console desk
RAM:
 2GB
Hard Disk:
1TB
Keyboard: Special design

System: Windows 10

Electric roller: Three-phase

COMPLIANCE

International: ISO19001, ISO14001, OHSMS18001
