Mawari 18 Zones Walkthrough Metal Detector
Mawari 18 Zones Walkthrough Metal Detector
SKU:330CA/18

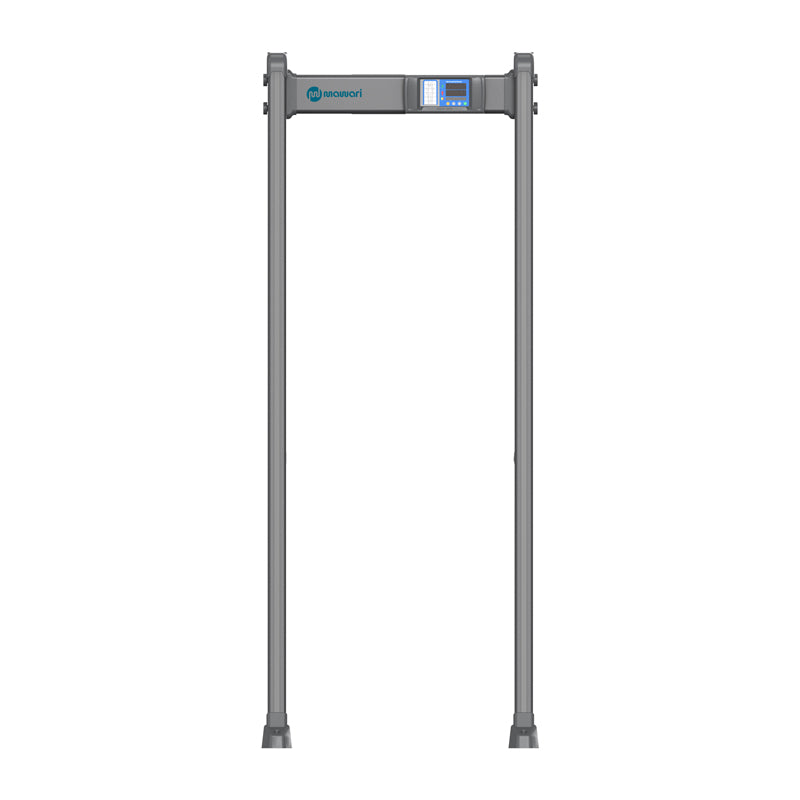

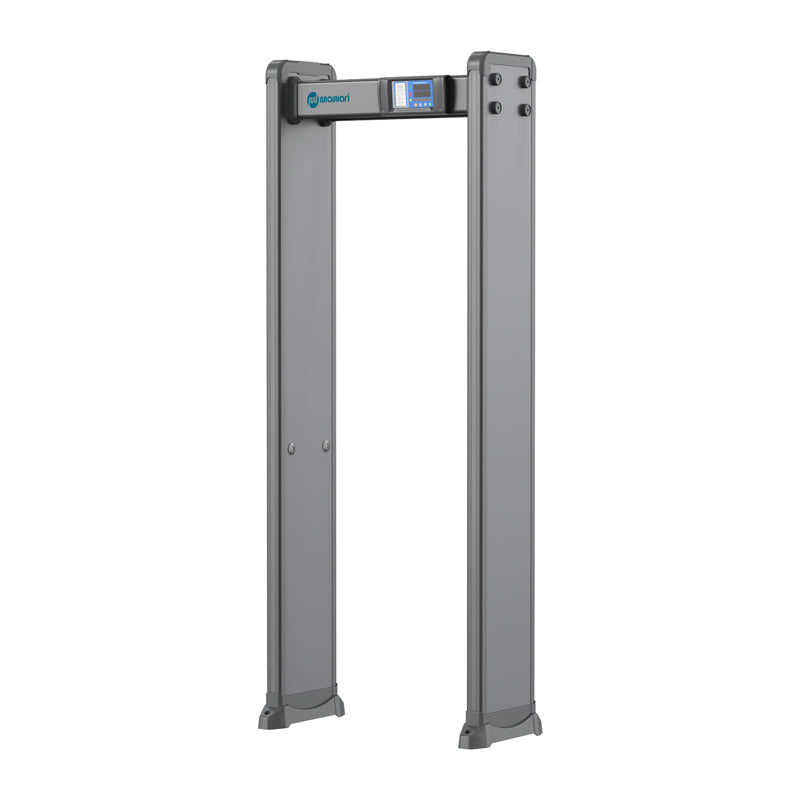

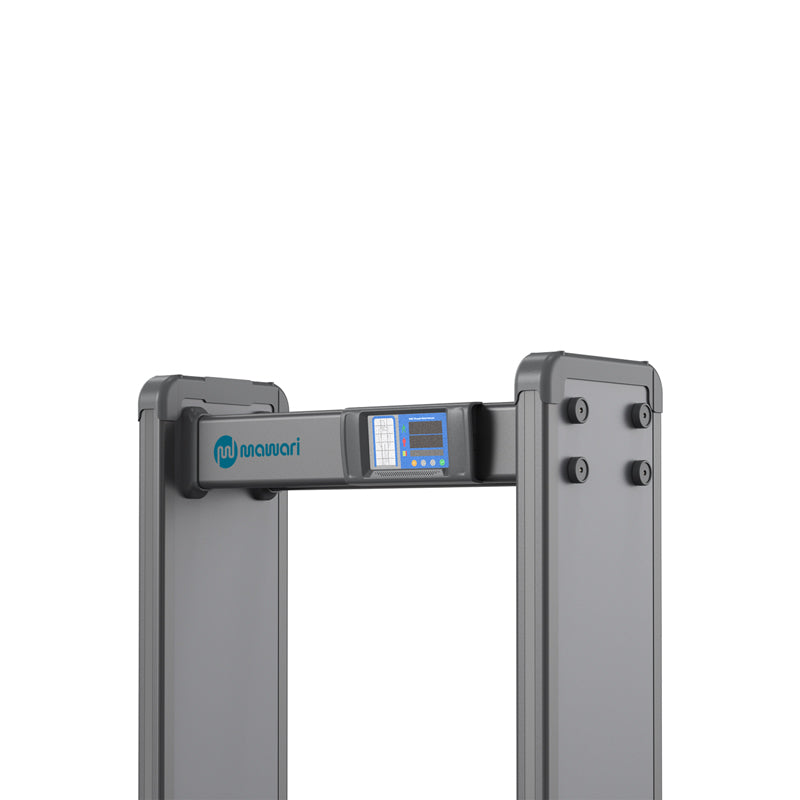

330CA Indoor Walkthrough Metal Detector
Classic Design with 338mm Passage
This iconic security gate features a spacious 338mm passage,
ensuring comfortable and efficient screening
Versatile Indoor Use:
Ideal for a wide range of indoor environments, the security gate seamlessly
integrates into various settings, offering reliable security across different locations.
| Technical parameter | |
| Product Model | 330CA |
| Vertical Overall Dimension（mm） | 2191x875x446mm |
| Vertical Dimensions of Passage (mm) | 2007x720x338mm |
| Package Size (mm) | 2285x665x215mm |
| Net Weight/Gross Weight | 33kgs/38kgs |
| Detection Zones | 3/6/9/12/18/11/22/33 zones |
| Working Voltage | AC90V～264V 50／60Hz |
| Working Power | 15W |
| Operating Frequency Range | 0-100 frequency bands |
| Working Environment Temperature | -20℃～65℃ |
| Installation Environment | 100cm wide * 200cm long (minimum range without metal) |
|
Accuracy Range of Metal Objects |
Maximum sensitivity ≥ 6g metal |
