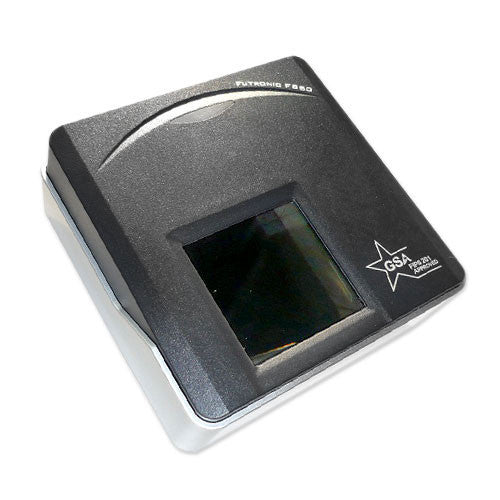

Futronic FS50 FIPS201/PIV Compliant USB2.0 Two Finger Scanner
Futronic FS50 FIPS201/PIV Compliant USB2.0 Two Finger ScannerFS50 can capture single finger, dual finger and roll finger image. It was certified by FBI to be compliant with PIV-071006 Image Quality Specification (view PDF) for Single Finger Reader and Mobile ID FAP40. So FS50 meets the US Federal Information Processing Standard 201(FIPS 201) for Personal Identification Verification (PIV) of Federal Employees and Contractors. It is also listed in the US General Services Administration (GSA) FIPS 201 Evaluation Program Approved Product List (http://www.idmanagement.gov/approved-products-list).
A unique serial number is factory-programmed into the USB Device Descriptor of each FS50. So every FS50 is traceable and this is very important for government identity management projects.
Futronic provides Application Programming Interface (API) for FS50 to capture fingerprint image on the following platforms:
Windows XP/2003, 32 bit and 64 bit.
Windows Vista/2008, 32 bit and 64 bit.
Windows 7/8/10, 32 bit and 64 bit.
Linux with kernel 2.4 or higher (for both x86 and ARM9)
Windows CE 5.0 and 6.0 (for both x86 and ARM9)
MAC OS(version 10.5, 10.6 and 10.7, Intel CPU)
Android 3.1 and higher with USB Host port
Futronic provides fingerprint segmentation software to customers. With this software, the two finger image captured from FS50 can be separated into two individual images/files which are ready for next stage image processing. Other important function like WSQ compression and NIFQ fingerprint image assessment are also ready. A demo program is available on request. Interested customers are welcome to contact us to get this demo.
FS50 works with Futronic Windows SDK for multi-finger template extraction and matching. For detail, please contact us.
Fingerprint scanning window size is 1.6 x 1.5 inch (40.64 x 38.10 mm)
Image resolution is 800 x 750 pixel, 500 DPI
Image format is 8 bit 256 grayscale
Light source: Infrared LED
Fingerprint image file size is 600K byte
USB 2.0 compatible interface, plug and play device
Unique serial number programmed to USB Device Descriptor
With 8K Byte memory for application-specific data storage
With a detachable 2M standard USB cable
ESD contact - 8KV and air discharge - 16KV, no permanent damage
Operation temperature: -10 to +55 Degree Celsius
Size, 110 x 110 x 45 mm
Weight, 460g with USB cable, 380g without USB cable
National ID card
Voter registration and verification
