Brand: Anviz

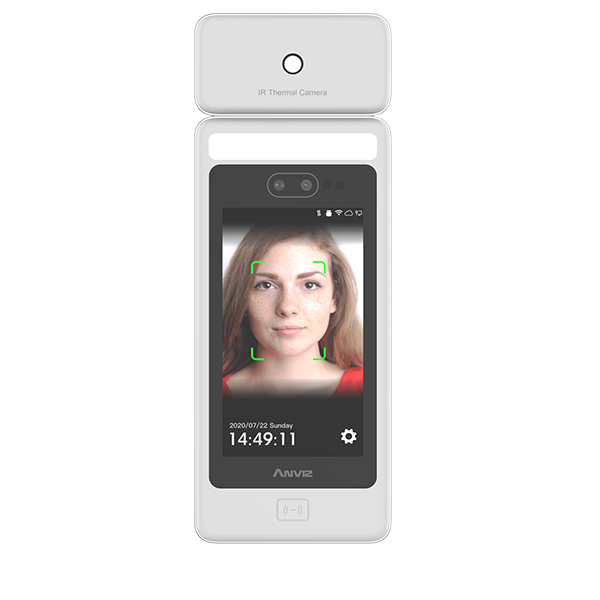

ANVIZ FACEDEEP 5 IRT

ANVIZ FACEDEEP 5 IRT

SKU:

Regular price ₱107,400.00 PHP
Regular price ₱129,950.00 PHP Sale price ₱107,400.00 PHP
Sale Sold out
Tax included.

BEST IN CLASS OF AI BASED SMART FACE RECOGNITION TERMINAL

FaceDeep 5 is the new AI-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO® deep learning algorithm. It supports up to 50,000 dynamic face database and rapidly recognize users within 2M(6.5 ft) in less than 0.3 seconds and customizes alerts and a variety of reporting for no-mask wearing.

Combined by the multispectral imaging technology through an infrared light camera and a visible light camera to ensure live face detection function .

Powerful CPU Embedded with BioNano® Deep Learning Algorithm

IR Thermal Cameras
Temperature Range  =  -10°C~50°C
Deviation  < ±0.3°C
Temperature distance =  40cm~100cm

Brochure
Video Presentation

Features

Thermographic (Facedeep 5) VS Thermopile

Thermopile
2S Speed Identification
Limited Angle
Narrow Range  =  3cm ~ 30cm


Thermographic
0.2S Speed Identification
Flexible Angle
Wide  =  30cm ~ 100cm

Temperature screening with thermographic technology (32x32 pixels)
More accurate and faster to catch up than others with thermopile technology (single point)

Specifications

Model


FaceDeep 5


FaceDeep 5 IRT

Capacity

Max.User

50,000

Max.Card

50,000

Max.Log

100,000

Interface

Communication

TCP/IP, RS232, Wi-Fi

I/O

Relay Output, Wiegand Output, Door Sensor, Switch

Feature

Identification

Face, Password, RFID Card

Identification Speed

<300ms

Protection

IP65

Embedded Webserver

Support

Multi-languages Support

Support

Software

CrossChex

Hardware

CPU

Dual Core Linux Based 1Ghz CPU with Enhanced AI Computing Power

Cameras

Infrared Light Camera*1, Visible Light Camera*1

Dimensions{W x H x D)

88*190*16 mm (3.465*7.48*0.629 inch)

88*236*16 mm (3.465*9.29*0.629 inch)

Infrared Thermal Temperature Module

Temperature Range: -10~50 °C (14~122 °F)
Detection Distance: 30~100 Cm
Accuracy: ±0.3 °C (0.54 °F)

LCD

5" IPS LED Touch Screen

Camera Angle Range for Verification

74.38°(Visual),67.57°(Infrared)

Identification Distance

< 2m (78.7 inch)

RFID Card

Supported with duel frequency RFID cards, 125KHz EM & 13.56MHz Mifare,DESFire

Humidity

20% to 90%

Operating Temperature

-30 °C (-22 °F)- 60 °C (140 °F)

Operating Voltage

DC12V 3A
