Brand: CCS

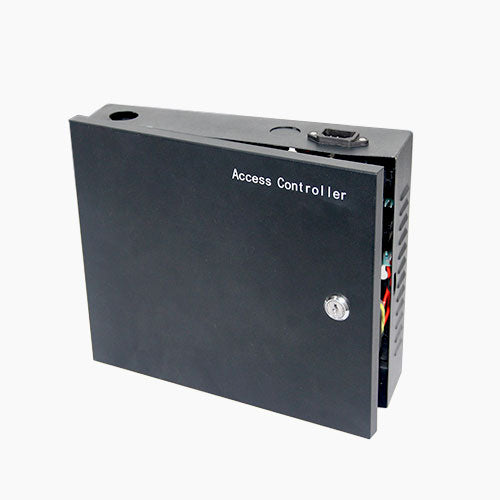

Aide 4 Door Access Controller
Aide 4 Door Access Controller
SKU:800NT4-Set
Regular price
₱17,090.40 PHP
Regular price
Sale price
₱17,090.40 PHP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Share
With software, control 1 door, connect 2 readers(enter/out) or 1 reader(enter)+1 exit button , can set who/when/how can access, suit for in/out personnel management of all kind of site and checking employees' attendance status & doing statistical management of corporation, government departments.
Features
In/out management: Can check in/out time of everyone, suit for in/out personnel management of all kind of site.Time & Attendance: Suit for checking employees' attendance status & doing statistical management of corporation, government departments.
Access control setting: Can set who/when/how can access.
Opening door by cell phone: Open door by cell phone through WIFI.
Anti-passback of 1 door: Must swipe card to enter in and only swipe the same card to exit; To prevent people.
Following enter & exit; Suit for facility with high security requirements.
Opening door by multi-card: Swipe multiple cards, door will be opened.
Opening door by first card: Must swipe the first card, the others can enter by swiping their card.Suit for confidential department.
Specifications
User capacity: 20,000 pcs
Event log: 100,000pcs (can be saved on controller permanently)
Way of opening door: card; card + PIN; multi-cards; first card etc.
Communication standard: TCP/IP
Language of Software kit: Chinese & English
Support database: Access and SQL
Requirement of power supply: DC 12V/3A
Idle current: 120mA
Input format of card data from reader: Wiegand 26, 34 bit
Input format of pressing keypad of reader: 4bit or 8bit (ACII)
Delay time of opening door: 1-600s optional
The maximum number of controller connecting in LAN: no limit
Operating temperature: -40-60
Operating humidity: 10-95%(non - condensing )
The max distance between reader and controller: 100meter (cable requirement: RVV0.3)
The max distance between controller and controller: depending on network coverage.
Dimensions: 163mm*125mm*25mm
