Brand: CHAINWAY

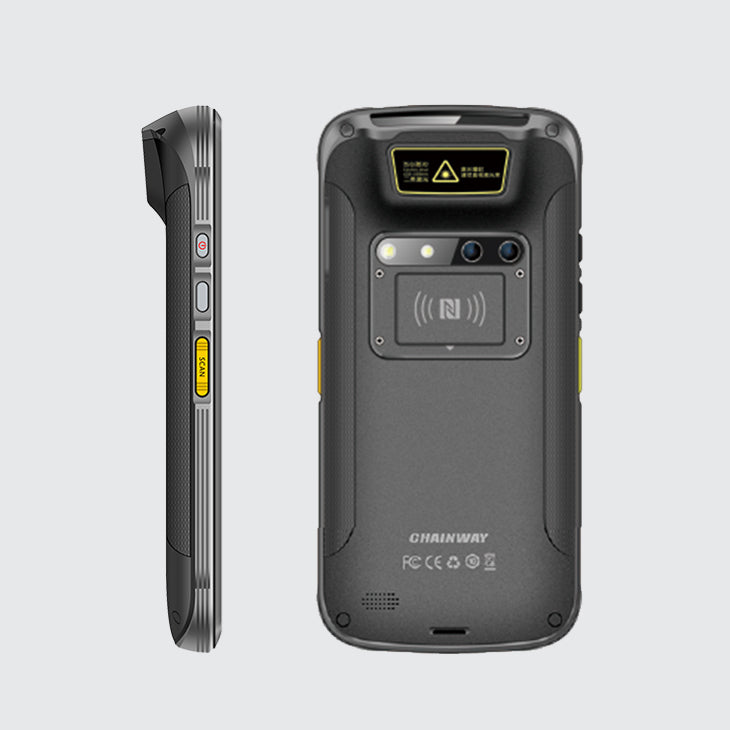

Chainway C71 Mobile Computer
Chainway C71 Mobile Computer
SKU:C71-N
Regular price
₱36,568.80 PHP
Regular price
Sale price
₱36,568.80 PHP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Share
C71 Mobile Computer
Expandable Functions, Flexible Applications for Multiple Industries.
Chainway C71 is an Android rugged mobile computer. With its powerful processor and wireless connections such as 4G, Bluetooth and Wi-Fi, as well as comprehensive data capture options, including iris/fingerprint recognition, infrared, UHF RFID, PSAM, barcoding and HF RFID/NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.
Datasheet
User manual
Accessories guide
SPECIFICATIONS
| Physical Characteristics | |
| Dimensions | 164.2*78.8*17mm/6.46*3.10*0.67in (for standard version) |
| Weight | <288g / 10.15oz (for standard version) |
| Display | 5.2'' IPS FHD 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card, three choice two |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor |
| Performance | |
| CPU | Cortex-A53 Quad-core 1.45GHz/Cortex-A53 Octa-core 2.5GHz |
| RAM+ROM | 2GB+16GB(Quad-core)/3GB+32GB(Octa-core) |
| Expansion | Supports up to 128 GB Micro SD card |
| Communication(Quad-core) | |
| WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
| WWAN (China) | 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41 |
| WWAN (Europe) | 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40 |
| WWAN (America) | 2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHz 4G: B2, B4, B7, B12, B17 |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth 4.0, BLE |
| GNSS | GPS/AGPS, GLONASS, BeiDou, internal antenna |
| Note | C71 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer. |
| Fingerprint | |
| Sensor | Capacitive TCS1/TCS2; Optical Morpho CBM-E3 |
| Note | *For detailed specification, please check C71 (Capacitive/Optical Fingerprint) webpages This Function is Optional |
| PSAM | |
| Protocol | ISO7816 T=0, T=1 |
| Slots | 2 slots for PSAM cards |
| Note | *This function is optional |
| Barcode Scanning | |
| 1D Linear Scanner（Quad-core） | Zebra SE965 / Honeywell N4313 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Imager Scanner(Quad-core) | Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
| 2D Imager Scanner(Octa-core) | Zebra: SE2707 |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
| Camera | |
| Camera | 13MP autofocus rear camera with flash, optional 5MP front camera |
| NFC | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Note | *This function is optional |
| Iris Recognition | |
| Rate | <150ms |
| Range | 20-40cm |
| FAR | 1/10000000 |
| Note | Protocol：ISO/IEC 19794-6，GB/T 20979-2007 |
| Note2 | *This function is optional *Iris is alternative to front camera |
| User Environment | |
| Operating Temp. | 4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.6ft falls at room temperature |
| Sealing | IP65/IP67 per IEC sealing specifications |
| ESD | ±15KV air discharge, ±6KV conductive discharge |
| Developing Environment | |
| Operating System | Android 6.0(Quad-core)/Android 8.1(Octa-core) |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Communication(Octa-core) | |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| WWAN (China) | 2G: 900/1800MHz 3G: WCDMA: B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 |
| WWAN(Europe) | 2G: 850/900/1800/1900MHz 3G: B1,B2,B4,B5,B8 4G: B1,B3,B5,B7,B8,B20,B40 |
| WWAN (America) | 2G: 850/900/1800/1900MHz 3G: B1,B2,B4,B5,B8 4G: B2,B4,B7,B12,B17,B25,B66 |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth v2.1+EDR,3.0+HS,v4.1+HS |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| UHF RFID | |
| Frequency | 865MHz-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization (1dBi) |
| Power | 0.4W (26dBm, +16dBm to +26dBm adjustable) |
| R/W ranges | Up to 3m (depend on tags and environment) |
| Note | *This function is optional |
| InfraRed | |
| Wavelength | 940nm |
| Frequency | 38kHz |
| Range | >4m |
| Protocol | DLT_645-2007, DLT_645-1997 |
| Note | *This function is optional |
| Camera | |
| Camera | 13MP autofocus rear camera with flash, optional 5MP front camera |
