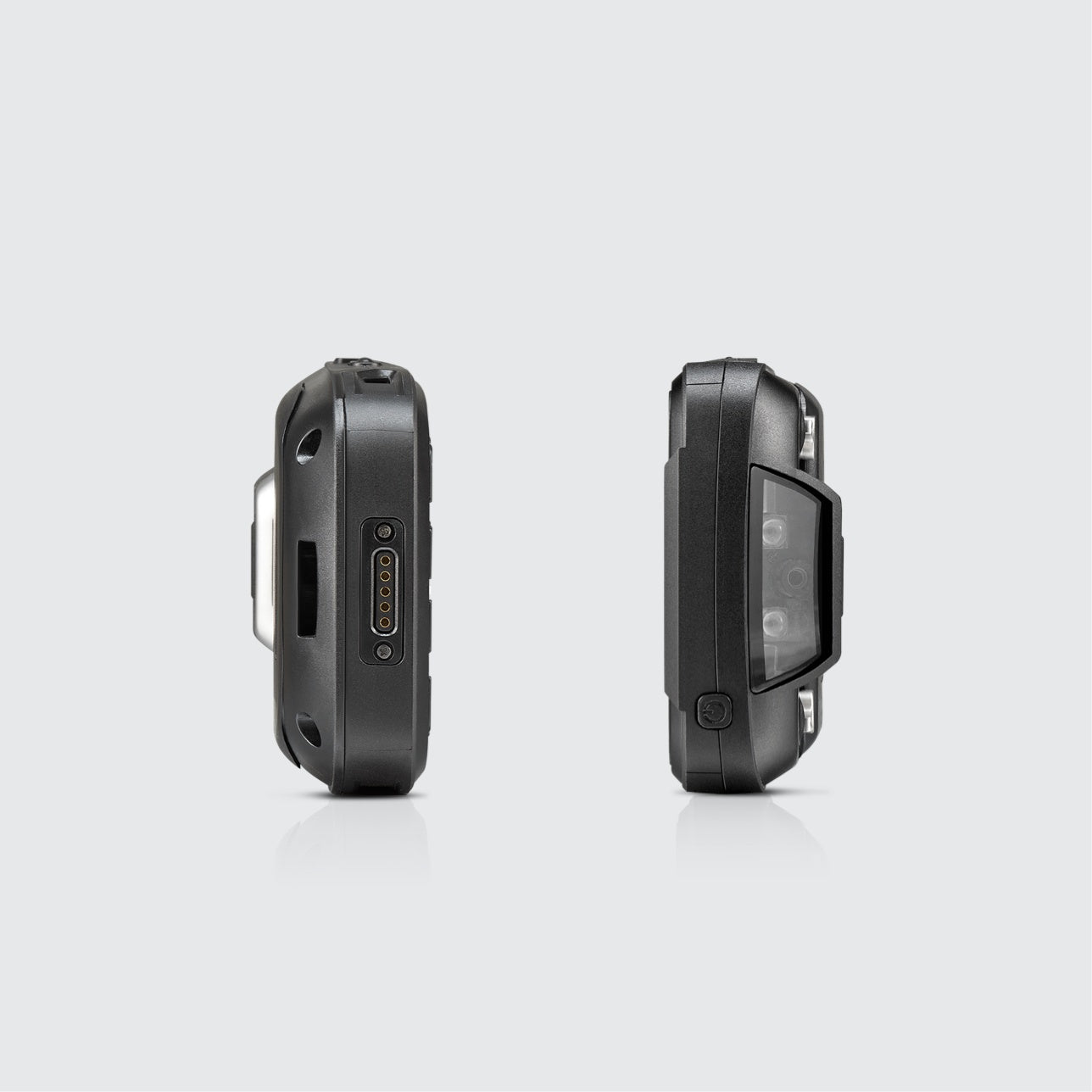

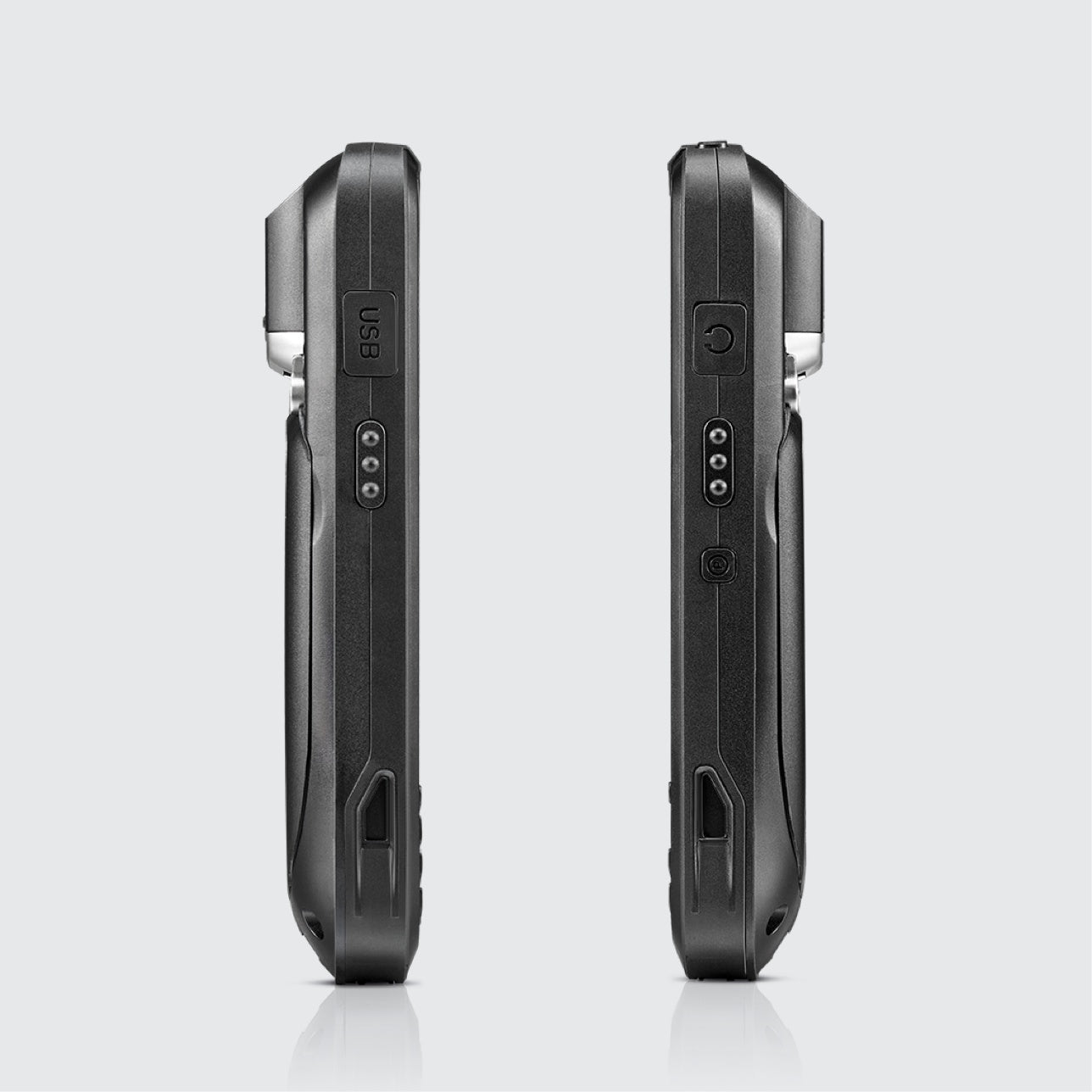

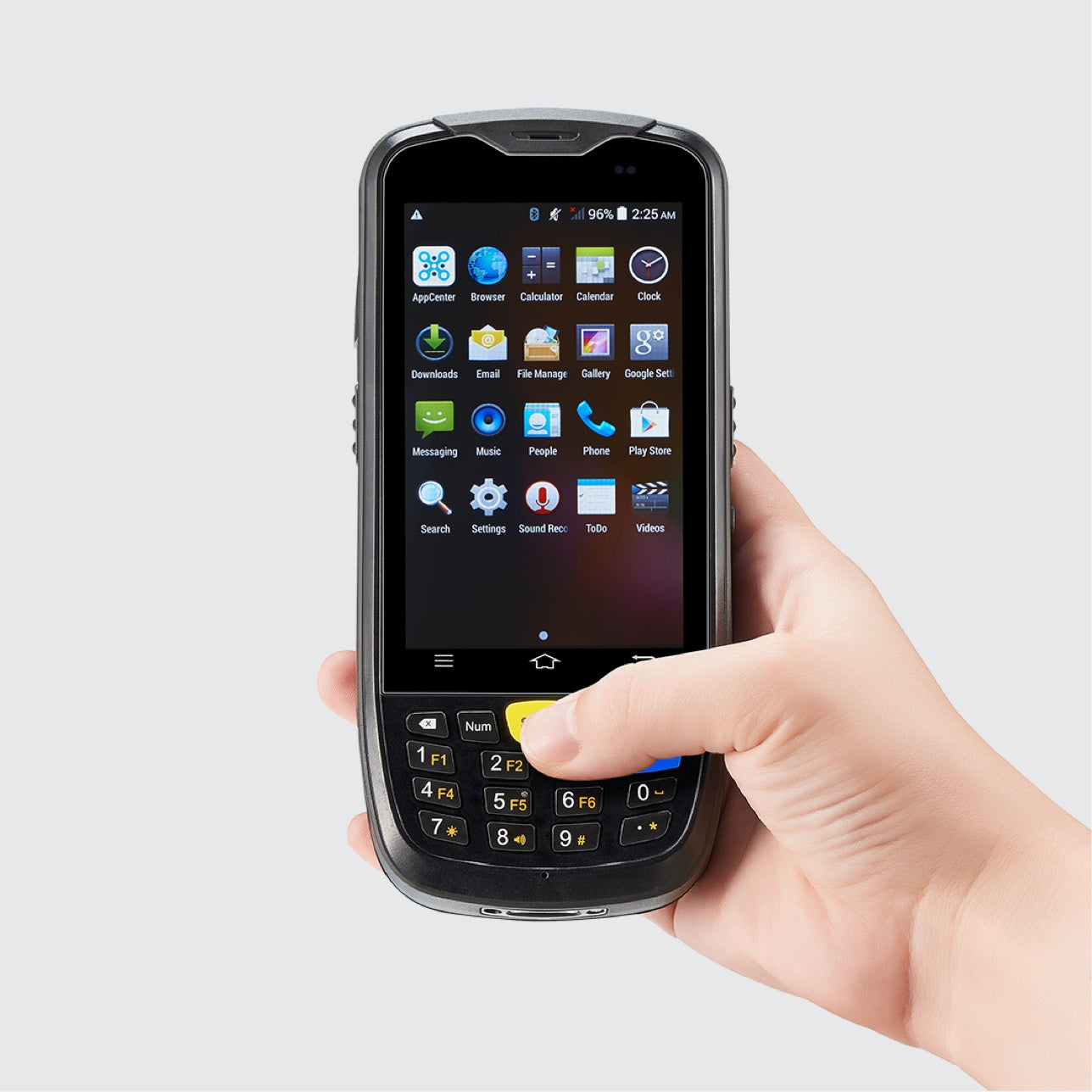

Chainway C6000 Rugged Handheld Computer
|Dimensions||157.6 x 73.7 x 29mm/6.2x2.9x1.1in|
|Display||4'' WVGA (480*800), 16.7M colors|
|Touch Panel||Rugged dual touch capacitive touch panel|
|Power||Main battery: Li-ion, rechargeable, 4000mAh
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
|Expansion Slot||1 PSAM (protocol: ISO7816), 1 SIM, 1 MicroSD (TF) slot|
|Interfaces||USB Micro-B, OTG|
|Audio||0.5W speaker, build-in microphone|
|Keypad||3 TP soft keys, 3 side keys, numeric keyboard|
|Sensors||Light sensor, proximity sensor, gravity sensor, vibration motor|
|AC Adapter||Input: 100V-240V, 50-60Hz, 0.29A
Output: 5V, 2A
|High-level Configuration||CPU: Cortex A-53 1.3 GHz quad-core
|Low-level Configuration||Cortex A-53 1.3 GHz quad-core
|Expansion||Supports up to 128 GB Micro SD card|
|WLAN||IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna|
|WWAN (Europe)||2G: 850/900/1800/1900MHz
4G: B1, B3, B5, B7, B8, B20, B40
|WWAN (America)||2G: 850/900/1800/1900MHz
4G: B2, B4, B7, B12, B17
|WWAN (China)||2G: 900/1800MHz
4G: TDD-LTE: B38, B39, B40, B41
FDD-LTE: B1, B3
|WWAN (Others)||Depending on the country's ISP|
|Bluetooth||Bluetooth 4.0 BLE|
|GNSS||GPS/AGPS, GLONASS, BeiDou; internal antenna|
|Camera||8/13MP Autofocus with flash|
|Operating Temp.||-4°F to 122°F / -20°C to 50°C|
|Storage Temp.||-40°F to 158°F / -40°C to 70°C|
|Humidity||5%RH - 95%RH non condensing|
|Drop Specification||Multiple 2.0m/6.56ft drops to concrete across the operating temperature range|
|Tumble Specification||1000 x 0.5m/1.64ft falls at room temperature|
|Sealing||IP65 per IEC sealing specifications|
|ESD||±15KV air discharge, ±6KV conductive discharge|
|Operating System||Android 6.0|
|SDK||Chainway Software Development Kit|
|Tool||Eclipse / Android Studio|
|1D Linear Scanner||Zebra SE965 / Honeywell N4313 / UE966|
|1D Symbologies||UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc|
|2D Imager Scanner||Zebra SE4710/ SE2100 / Honeywell N6603|
|2D Symbologies||PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc|
|Note||*This function is optional|
|Protocol||ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc|
|Chips||M1 card (S50, S70), CPU card, NFC tags, etc|
|Note||* NFC is only available for high-level confguration ，and can not coexist with the pistol grip.|
