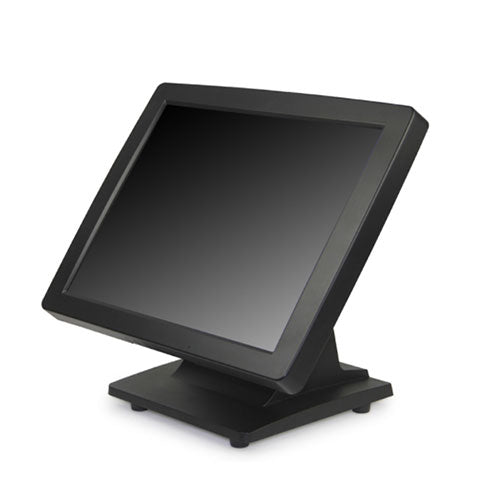

CCS 15" LCD Monitor

WLED
8W ultra-low power
convenience for use
600:1 contrast ratio
stand-by power consumption: ＜1W

SPECIFICATIONS

LCD Panel Type
15.1 TFT LCD panel (optional)
Max. Resolution
1024(horizontal)*768(vertical)*GA
Body size
348*(W)*285(H)*55(D)mm
Contrast
400:1
Brightness
300CD/㎡
Response Time
8MS
Viewing  Angle    left/right
+80°～-80° or +60°～-60°
Viewing  Angle    up/down
+80°～-80° or +55°～-65
Enter message  Visual message
RGB analog 0.7V p-p
Synchronization
TTL Anode or Cathode
Display Mode
VGA,SVGA,XGA
Signal Connector
15-hole mini D-Block
Front Panel control buttons
Power control switch, LED indicator, OSO menu,
+/ adjustment button, screen automatically set, OSO choose.
OSD Adjustment
Contrast, brightness, auto adjust, image-bit quasi, phase,
Horizontal position, vertical position , enter message,
Computer VGA
Power Transformer
AC:100-240V～1.8A 50-60Hz
DC: 12V/2.5A
Operating Environment
Temperature:0-50℃, Humidity 20-81-0%
Storage Environment
Temperature:-20-60℃, Humidity 20-81-0%
Safety Certification
FCC(DOC),CE,VCC-I,TUV/GS,TCO’99 (optional)
