Brand: ACS

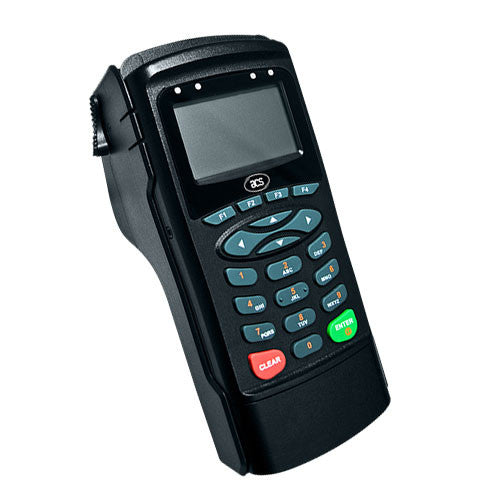

ACS ACR89U-A2 Handheld Smart Card Reader - Contactless Version

ACS ACR89U-A2 Handheld Smart Card Reader - Contactless Version


Regular price ₱15,480.00 PHP
Regular price Sale price ₱15,480.00 PHP
Sale Sold out
Tax included.

ACR89U-A2 is a handheld smart card reader with NFC tag support. Primarily designed for a multi-application environment. It can access any contact and contactless smart cards following the ISO7816 and ISO14443 standards. This portable pinpad reader has a dual smart card interface and a contactless card reader module. It runs with 32-bit MCU, and has LED indicators, 128 x 64 high-resolution graphical LCD, buzzer, rechargeable battery and large programmable memory. Through these features, it enables users to perform secure smart card transactions in both in-house and field environments.

ACR89U-A2 comes from the ACR89 series which provides the unique advantage of having two modes—PC-linked and Standalone—to cater to unique user requirements. For its PC-linked mode, it connects to the PC via its USB cable; while for its Standalone mode, it uses its Lithium Ion Battery to run wirelessly. It also comes with a serial Interface port that enables connection to other peripherals. It can provide optimal solution with additional thermal printer support.

Being CCID-compliant, ACR89U-A2 has a plug-and-play solution that facilitates ease of use and installation. Users can also build their own standalone applications through its multi-tasking environment using Free RTOS Kernel and C-language. Firmware upgradeable, ACR89 is suitable for existing and future smart card applications.

Technical Specs

Dimensions 181.5mm (L) x 77.0mm (W) x 30.5mm (H)
Weight 235g
Power Source
  • PC-linked mode: USB powered (via detachable USB cable)
  • Standalone mode: Battery powered (Li-ion Battery with charging through USB)
Compliance / Certifications
  • CE, FCC, RoHS Compliant, ISO 7816, ISO 14443, PC/SC, CCID, USB Full Speed
  • Microsoft WHQL: 2000, XP, Vista, 7, 8, 8.1, Server 2003,  Server 2008, Server 2008 R2, Server 2012, Server 2012 R2
Interface USB Full Speed 2.0
Supply Voltage 5V DC (via detachable USB cable)
Operating Temperature 0°C to 50 °C
Smart Card Interface Support
  • Contact
    • ISO 7816 Class A, B and C (5V, 3V, 1.8V)
  • Contactless
    • ISO 14443 Type A & B
    • MIFARE
    • FeliCa
    • 4 types of NFC (ISO/IEC 18092) tags
Operating System Support
  • Windows®
  • Linux®
  • Mac OS®
  • Android™
