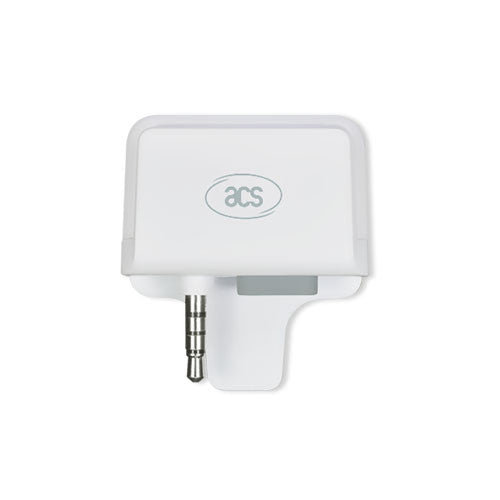

ACS ACR31 Swipe Card Reader

ACR31 Swipe Card Reader combines card reader functionality and mobility, enabling you to access secure applications anytime, anywhere. Compact and stylish, this card reader supports demanding applications that use magnetic stripe cards. It provides the perfect balance between reliable functionality and design aesthetics to meet your security needs.

ACR31 Swipe is a reliable Mobile Card Reader that uses AES-128 encryption algorithm and DUKPT Key Management System for secure transactions, which makes it ideal for a broad range of solutions, such as e-Banking and e-Payment.

The ultra-compact ACR31 Swipe is specifically designed to be brought and used anytime, anywhere. A CR2016 battery (to stabilize the power supply) and a standard 3.5mm audio jack interface further allow the ACR31 Swipe to be integrated seamlessly into any smartphone or tablet in the market.
Built with a modern design, ACR31 Swipe is a portable and lightweight swipe card reader that is perfect for transacting securely while on the go.

Dimensions	39.7mm (L) x 46.0mm (W) x 18.0mm (H)
Power Source	CR2016 battery
Compliance / Certifications	CE, FCC, VCCI, RoHS 2, REACH
Interface	3.5mm 4-pole audio jack
Supply Voltage	2.3 to 3 V DC
Supply Current	5 mA
Operating Temperature	0-50°C
Card Swipe Speed	Max. 10 IPS (inches per second)
Card Swipe Cycles	Min. 500,000
Magnetic Stripe Card Support	ISO7810 / ISO7811 Hi-Co and Low-Co Magnetic Cards JIS1 and JIS2
Operating System Support	Android™ 2.0 and above iOS 5.0 and above
Supported Mobile Device	For the full list of supported devices, please click here.
