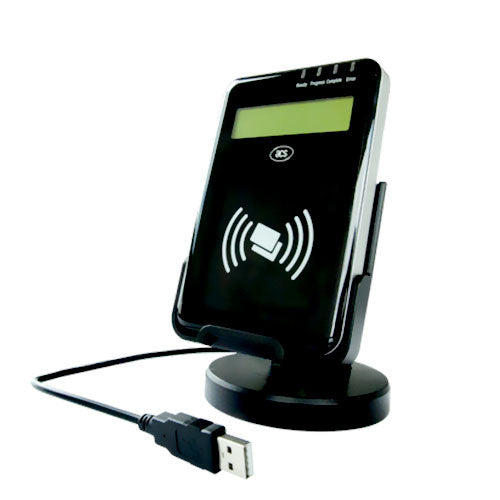

ACS ACR1222L VisualVantage USB NFC Reader with LCD

ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, MIFARE, FeliCa and all 4 types of NFC tags.

ACR1222L VisualVantage USB NFC Reader with LCD

With its PC/SC compliance, ACR1222L ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. The LCD allows interactive operation such as scrolling up and down, left and right, etc. The device's three built-in SAM slots provide enhanced security during contactless operations.

Typical applications of ACR1222L include e-payment, loyalty programs and access control.

FEATURES

• USB 2.0 Full Speed Interface
• CCID Compliance
• Smart Card Reader:
  • Read/Write speed of up to 424 kbps
  • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • Support for ISO 14443 Part 4 Type A and B cards, MIFARE, FeliCa and all four types of NFC (ISO/IEC 18092) tags
  • Built-in anti-collision feature (only one tag is accessed at any time)
  • Three ISO 7816-compliant SAM slots
• Built-in Peripherals:
  • Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages)
  • Four user-controllable LEDs
  • User-controllable buzzer
• USB Firmware Upgradability

TECHNICAL SPECS

Dimensions	Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H); With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H)
Weight	Main Body: 173 g With Stand: 415 g
Compliance / Certifications	ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed, Microsoft® WHQL
Interface	USB 2.0 Full Speed
Operating Distance	Up to 50 mm (depends on the tag type)
Supply Voltage	Regulated 5V DC
Supply Current	300mA (maximum); 50mA (standby); 150mA (normal)
Operating Temperature	0-50°C
Operating Frequency	13.56 MHz
Smart Card Interface Support	ISO 14443 Type A & B MIFARE FeliCa 4 types of NFC (ISO/IEC 18092) tags
Operating System Support	Windows® Linux® Mac OS® Android™ 3.1 and above
