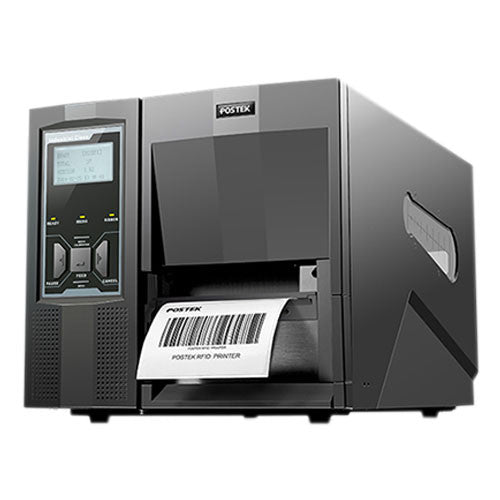

Postek TX2 INDUSTRIAL High Speed

FAST AND INTELLIGENT INDUSTRIAL-GRADE PRINTING SOLUTION
The original design of TX Series has been taken into account various elements that define an industrial printer: handling ability and memory, media compatibility and loading capacity, speed and performance, printing effect, interface and optional items. We always take the challenge to achieve the most advanced and  appropriate design for each parts, as well as the integration that are proved to be an outstanding product.
The metal-framed composition carries all advanced techniques that function in actual performance, producing flash-speed, steady and reliable printing, remarkable print quality, smart and intelligent solution, and compatibility with popular printer control languages.

BENEFITS
TX series can meet your printing needs of stability and reliability, as well as flash-speed and premium performance. The powerful CPU capacity and rugged parts work together to achieve the optimal outcome and significantly increased print efficiency.
Fixed chassis frame and metal construction fulfils strong structure that supports heavy printing workloads.
TX Series can automatically detect and support popular printer control languages (e.g PPL-E, PPL-Z) to accommodate the ease of replacing other mainstream brand printers.
National patented “Up/Down Reflective Media Sensors” and precisely designed mechanism work together to enable the stronger media compatibility and ensure accurate media detection, which can print very small labels down to 5mm in height.
Multiple interface modes are available for varies print applications and environment, which provide more choices for your print needs.

Specification

Model                                                        TX2
Printing Method                                Thermal Transfer
Printing Resolution                          203 dpi
Max Printing Speed                          10 ips (254 mm/s)
Max Printing Width                          4.09″(104 mm)
Max Printing Length                         157″(4000 mm)
Memory                                                    8 MB FLASH ROM, 16 MB SDRAM
Media
                                                                       Width: 4.56″(116 mm) max. Width: 4.56″(116 mm) max., 0.98″(25mm) min.
                                                                       0.79″(20 mm) min.
                                                                       OD: 8″(203.2 mm) max.    OD: 8″(203.2 mm) max. ID: 3″(76.2 mm) min.
                                                                        ID: 1.5″(38 mm) min.
Media Thickness                                  0.0024″ (0.06 mm) ~ 0.012″ (0.305 mm), including liner
Ribbon                                                       Ribbon roll: OD: 3.3″(84 mm) max., ID: 1″(25.4 mm) min.
                                                                        Max width: 4.65″(118 mm), Max length: 1968’ (600 M), Ink side: both In and Out. (12.7 mm)
                                                                       Max width: 4.3″(110 mm); Max length: 360’ (110 M)
Media Sensor                                        Up&Down Reflective (Adjustable) / Transmissive (Adjustable)
Fonts                                                          PPL-E: Five built-in dot matrix ASCII fonts, Downloadable TrueType Fonts fonts
                                                                       PPL-Z: Seven built-in dot matrix ASCII fonts and one scalable font, Downloadable TrueType Fonts
Bar Code Types                                   1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5,
                                                                       UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
                                                                       2D Barcode: MaxiCode, PDF417, Data matrix, QR Code, etc.
Interfaces                                                 RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB HOST, Centronics Parallel
LCD Display                                           Graphic Dot Matrix
Power Rating                                         110/220 VAC ±10%, 50/60 Hz
Weight                                                        15 kgs
Dimensions                                              W 11.3″(286 mm) x D 17.6″(448 mm) x H 11.0″(280 mm)
Operating Environment  Temperature:               32°F ~ +104°F (0℃~ 40℃  ),
Relative humidity:                                                            5% ~ 85% non condensing
Storage Environment Temperature:                    -40°F ~ +140°F (-40℃ ~ 60℃),
Relative humidity:                                                              5% ~ 85% non condensing
Optional Items:                                                                    External Rewinder, Rotary Cutter
