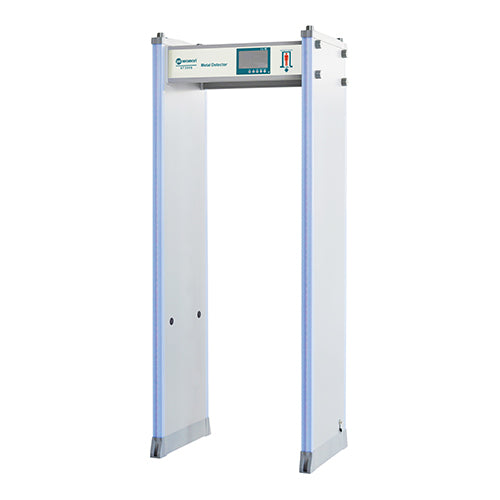

Mawari 33 Zones Walkthrough Metal Detector

Mawari 33 Zones Walkthrough Metal Detector


AT300S(outdoor use)
33 Zones Walkthrough Metal Detector

Product highlights

* Power on self test(POST) and diagnosis by component
* Modular components design for easy and quick transportation
and maintenance
* Stable performance, 1/6/11/33 localization zones options
* Sensitivity adjustment by each zone
* Detection of flying objects
* Powered by safe low valtage DC
* Enter power saving mode and wake-up automatically
* DSP Highly integrated digital processing technology brings stable
preformance avoid false alarm
* One key restore of the initial parameters
* Password and hardware key access protection
* IP 65 weather resistant protection
* Embedded battery back-up and charger
* Two LED indicating bars showing threat locations on human body
* Detect threat objects including magnetic, non-magnetic metals
and mixed alloys with high sensitivity to find tiny threat
* Super low detection height

Product Brochure

Technical Specification
Digital pulse technology Digital signal processing and filtering system with excellent ability to resist electromagnetic interference
Low-intensity magnetic field technology Compliant with international safety standard, and harmless to pacemakers, pregnant women, floppy disks, films, videos, etc.
Operation control Operates with a remote controller and 5 buttons at the screen for all functions
Screen 7 inch LCD
Detection zone Maximum 33 localization zones to identify multiple target locations, 11 from head to toe, 3 from left to right
Minimum height of detection 10mm
Alarm Sound and light, 2 LED light bars on both of the front door frame sides
- 16 sounds and 20 volume levels for selection
- Sound length 0-9 seconds for selection
- LED alarm time 0-9 seconds for selection
Counter Intelligent traffic and alarm counters that calculate traffic flow, in and out, and the alarm result.
Calibration No need periodic calibration
Detect speed Maximum 100 person/minute, adjustable
Sensitivity limit Can detect a one-cent RMB coin, or a clip
Sensitivity setting 0-300 adjustable by each zone, according to the size and density of metal objects to be detected 30 application sites pre-set for selection
Adjustable signal frequencies 100 working frequency/channel options Eliminate the potential effects from X-ray units, radios and other electrical interference sources.
Minimum distance between two WTMD 0.5m at high sensitivity
Tamper-Proof Operation program is protected by password
Gate material Special material board, fire-proof, corrosion proof, moisture-proof, anticollision, and no deformation.
Weather proof IP65, supporting outdoor work
Passenger and alarm record 100,000 records for passengers in and out and alarm
Options Battery or UPS, Integrated with camera, turnstile, network with PC by USB or WIFI, etc
