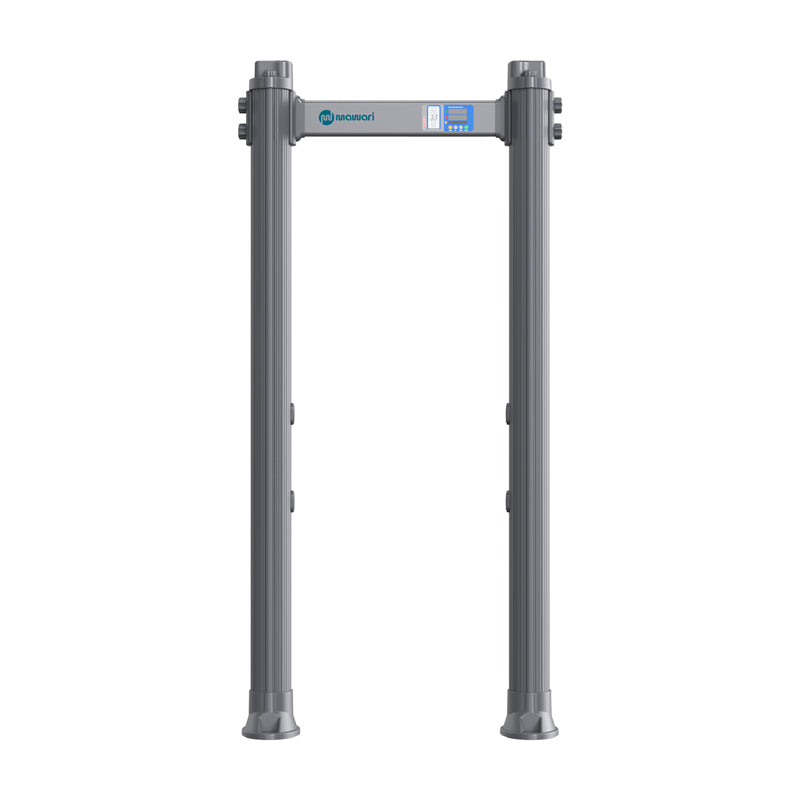

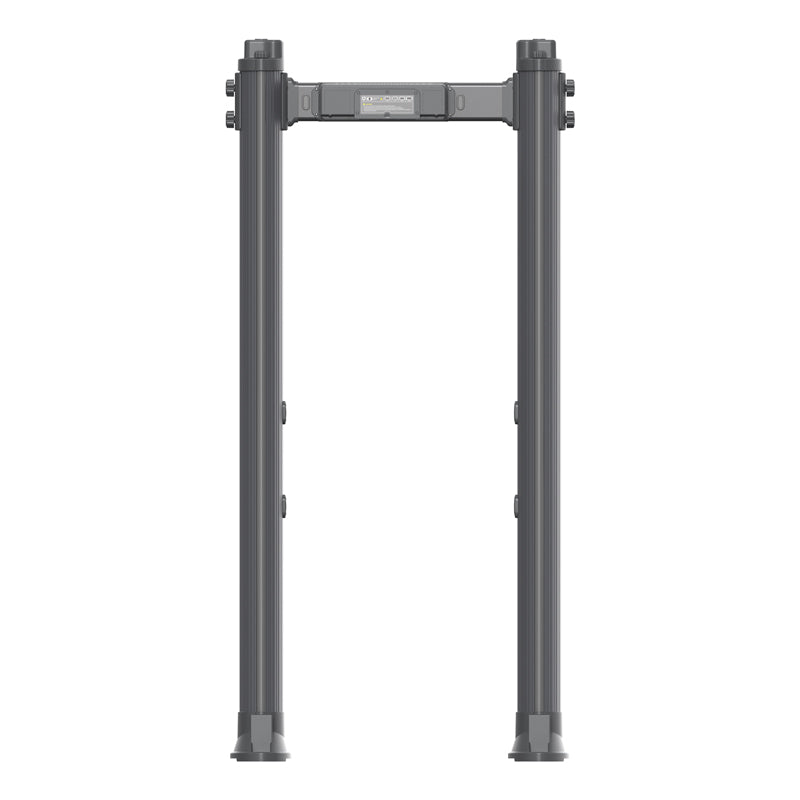

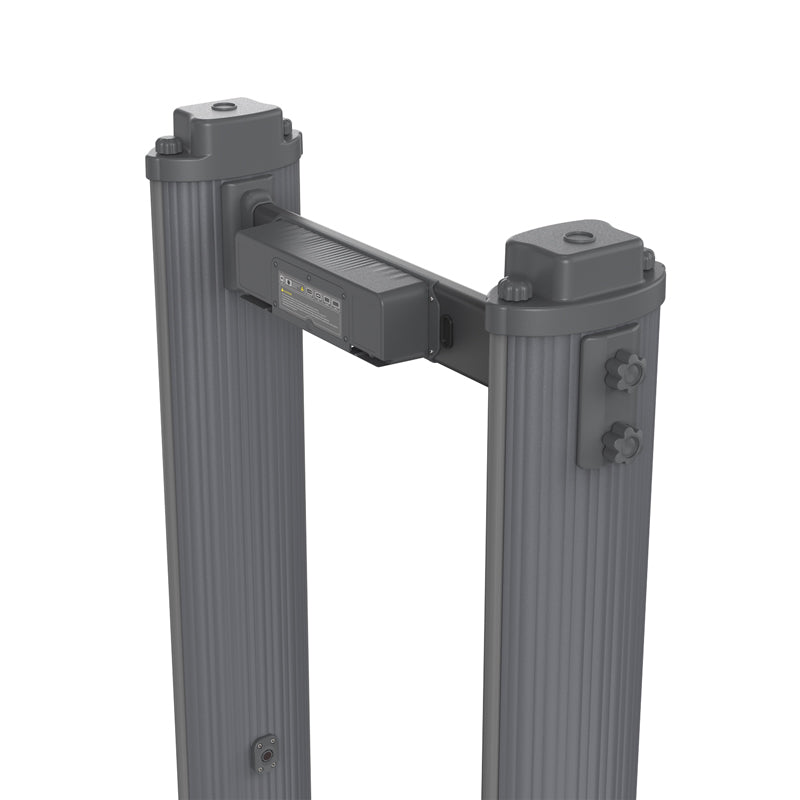

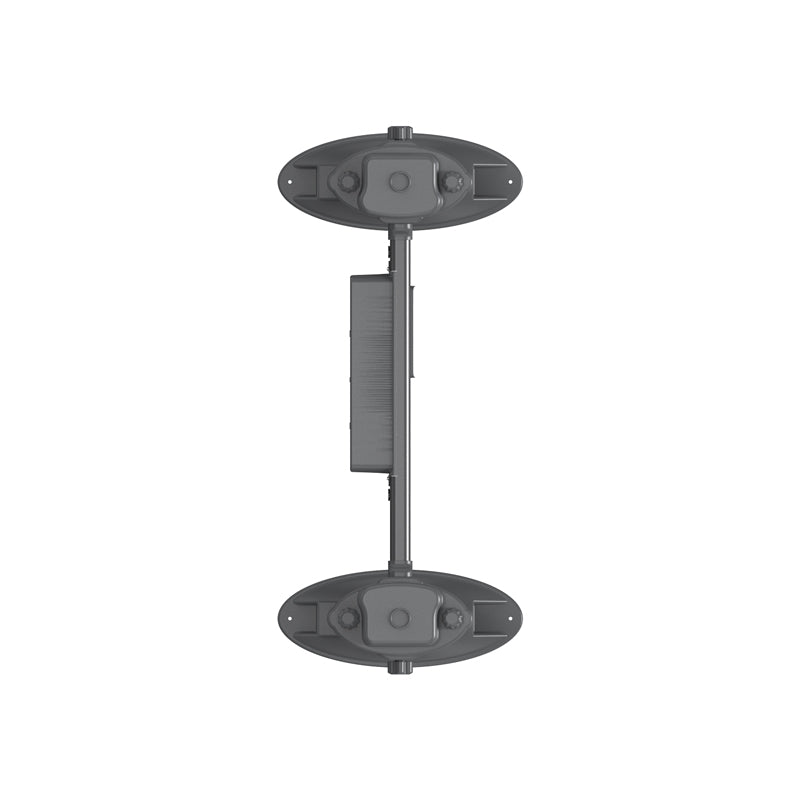

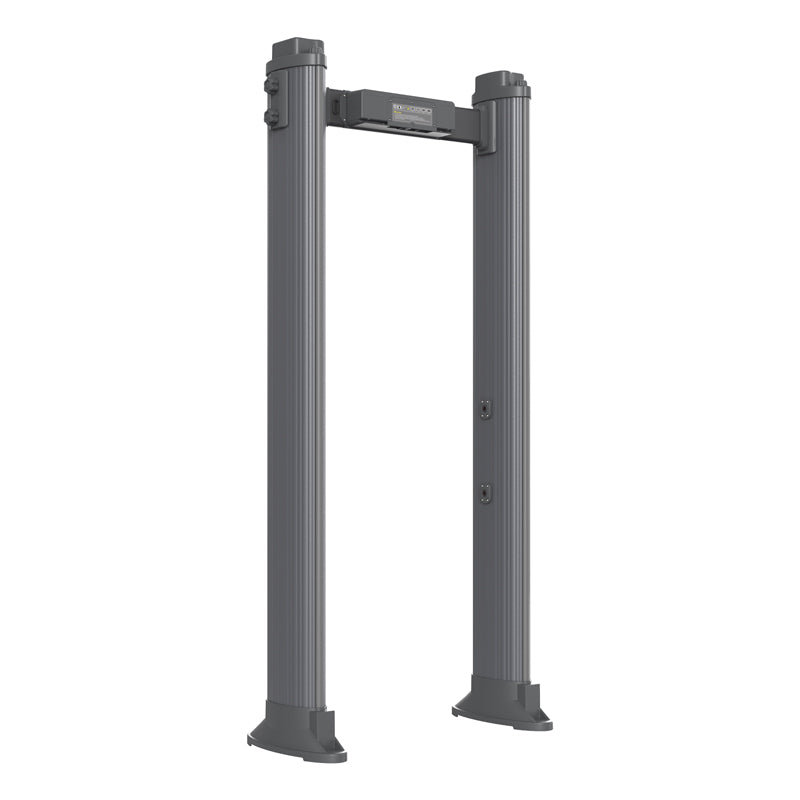

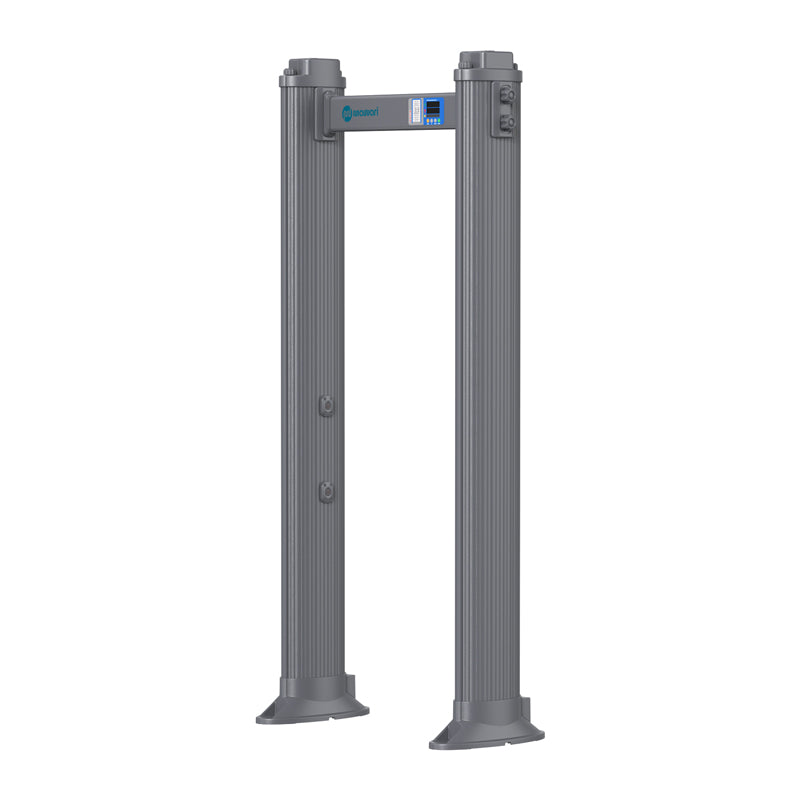

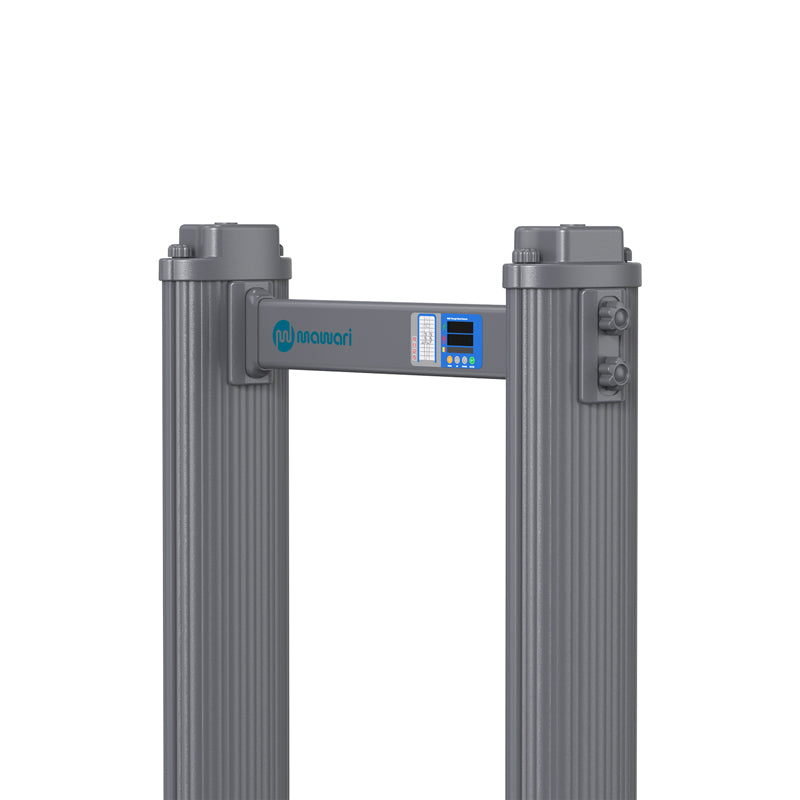

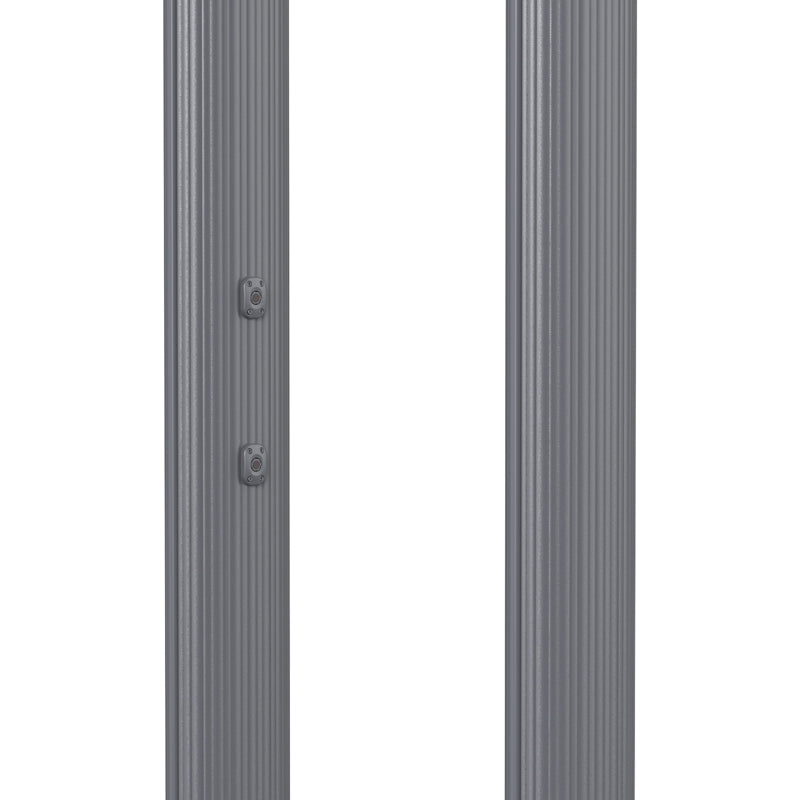

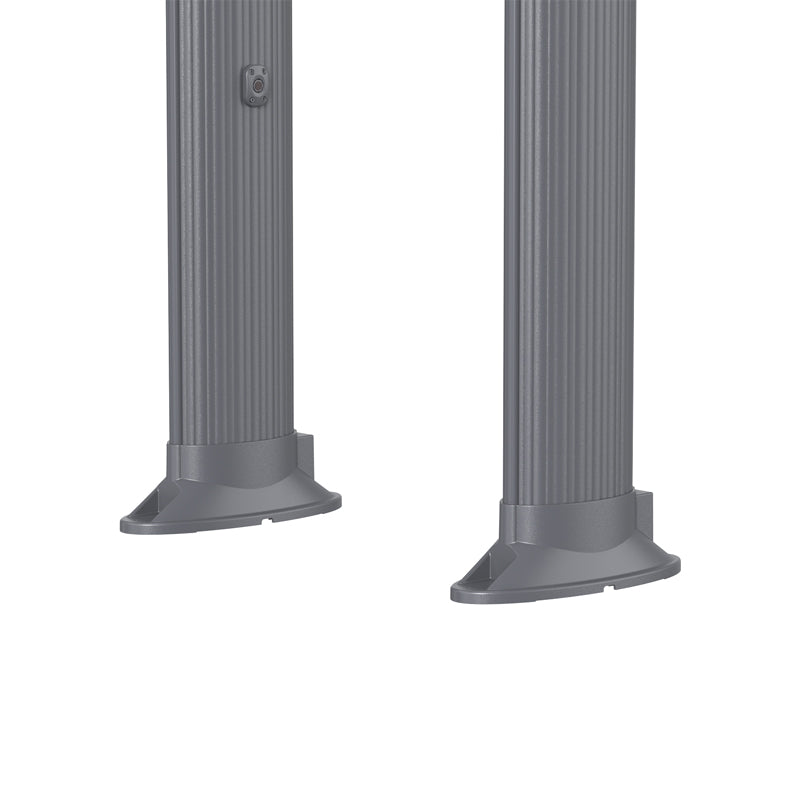

Mawari 33 Zones Outdoor Walkthrough Metal Detector

Mawari 33 Zones Outdoor Walkthrough Metal Detector


285WA Indoor Walkthrough Metal Detector

  • The system has the function of displaying environmental monitoring data; High performance, high sensitivity and high stability.
  • With system networking, multiple devices can be managed through one PC.
  • Pre set the weight, volume, size and position of metal objects, and eliminate false alarms such as keys, jewelry and belt buckles.
  • It conforms to EMC electromagnetic radiation standard, and uses weak magnetic field technology, which is harmless to pacemaker wearers, pregnant women, floppy disks, films, video tapes, etc.

View Datasheet

Technical parameter
Product Model 285WA
Vertical Overall Dimension(mm) 2230x1100x500mm
Vertical Dimensions of Passage (mm) 2000x720x500mm
Package Size (mm) 2440x630x750mm
Net Weight/Gross Weight 60kgs/65kgs
Detection Zones 18/33/63 zones
Working Voltage AC90V~264V 50/60Hz
Working Power 15W
Operating Frequency Range 0-90 frequency bands
Working Environment Temperature -20℃~65℃
Installation Environment 100cm wide * 200cm long (minimum range without metal)

IP Grade

IP 65 waterproof

Accuracy Range of Metal Objects
For Location Detection

Maximum sensitivity ≥ 30g metal
