Brand: Futronic

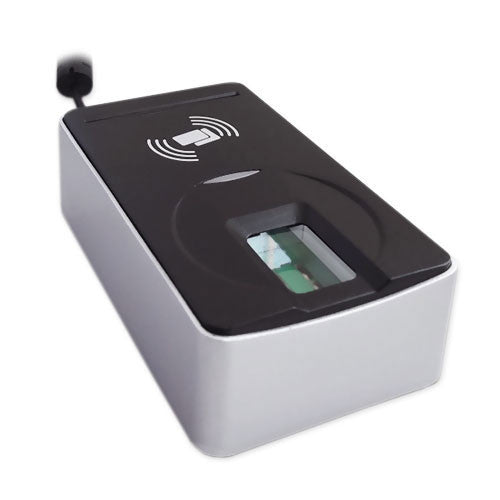

Futronic's FS26EU USB2.0 Dual Card Combo Reader
Futronic's FS26EU USB2.0 Dual Card Combo Reader
SKU:FS26EU
Regular price
₱11,856.00 PHP
Regular price
Sale price
₱11,856.00 PHP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Share
The Futronic FS26EU Fingerprint Reader combines Futronic's FS26E USB2.0 Fingerprint Scanner and a ISO7816 contact & ISO14443A/B contactless combo smart card reader into one device. A SAM (Secure Access Module) is also built-in to increase the device security.
FS26EU has a powerful BlackFin DSP processor for on device image processing. It communicates with the smart card reader by internal serial interface. After a fingerprint is captured, DSP will process the image and generate a template for smart card storage, MoD (Match On Device) or MoC (Match On Card) processing.
FS26EU is an ideal device for highly secure two-factor authentication application. A user can register fingerprint and store on smart card (carried by user) and do MoD or MoC with a freshly captured fingerprint from fingerprint scanner at the time of authentication. The registered fingerprint template will never leave the smart card that further enhances the system security.
Specification-general
USB 2.0 compatible interface, plug and play device
With a 2 meter standard USB cable
Small size, 120x72x42 mm
Light weight, 250 gram
Operation temperature: -10 to +55 Degree Celsius
Specification-Fingerprint matcher
Fingerprint scanning window size is 16.26x24.38mm
Image resolution is 320x480 pixel, 500 DPI
Raw fingerprint image file size is 150K bytes
With Live Finger Detection (LFD) feature
Unique serial number programmed to USB Device Descriptor
With internal memory for 100 fingerprint template storage
Specification-Smart card reader (ACS Contact & Contactless Reader Module)
Contact card
Full speed USB interface to PC with simple command structure
Support ISO7816 Class A, B & C, 5V, 3V, 1.8V contact cards *
Support microprocessor cards with T=0 or T=1 protocol
Support PPS, PC/SC & CT-API (Through wrapper on top of PC/SC)
Contactless card
Support ISO14443 A/B, Mifare classic cards *
Read/Write Speed up to 848Kbps
Card reading distance 30mm
Support PC/SC & CT-API (Through wrapper on top of PC/SC)
SAM
Support ISO7816 MCU Card
*For specific supported card types, please contact Competitive Card Solutions for detail.
Typical Application
e-Government
e-Banking and e-Payment
e-Healthcare
Transportation
Network Security
View full details
Futronic's FS26EU USB2.0 Dual Card Combo Reader
FS26E meets the US Federal Information Processing Standard 201(FIPS 201) for Personal Identification Verification (PIV) of Federal Employees and Contractors.FS26EU has a powerful BlackFin DSP processor for on device image processing. It communicates with the smart card reader by internal serial interface. After a fingerprint is captured, DSP will process the image and generate a template for smart card storage, MoD (Match On Device) or MoC (Match On Card) processing.
FS26EU is an ideal device for highly secure two-factor authentication application. A user can register fingerprint and store on smart card (carried by user) and do MoD or MoC with a freshly captured fingerprint from fingerprint scanner at the time of authentication. The registered fingerprint template will never leave the smart card that further enhances the system security.
Specification-general
USB 2.0 compatible interface, plug and play device
With a 2 meter standard USB cable
Small size, 120x72x42 mm
Light weight, 250 gram
Operation temperature: -10 to +55 Degree Celsius
Specification-Fingerprint matcher
Fingerprint scanning window size is 16.26x24.38mm
Image resolution is 320x480 pixel, 500 DPI
Raw fingerprint image file size is 150K bytes
With Live Finger Detection (LFD) feature
Unique serial number programmed to USB Device Descriptor
With internal memory for 100 fingerprint template storage
Specification-Smart card reader (ACS Contact & Contactless Reader Module)
Contact card
Full speed USB interface to PC with simple command structure
Support ISO7816 Class A, B & C, 5V, 3V, 1.8V contact cards *
Support microprocessor cards with T=0 or T=1 protocol
Support PPS, PC/SC & CT-API (Through wrapper on top of PC/SC)
Contactless card
Support ISO14443 A/B, Mifare classic cards *
Read/Write Speed up to 848Kbps
Card reading distance 30mm
Support PC/SC & CT-API (Through wrapper on top of PC/SC)
SAM
Support ISO7816 MCU Card
*For specific supported card types, please contact Competitive Card Solutions for detail.
Typical Application
e-Government
e-Banking and e-Payment
e-Healthcare
Transportation
Network Security
