Digital Persona U.are.U 5160 Fingerprint Reader

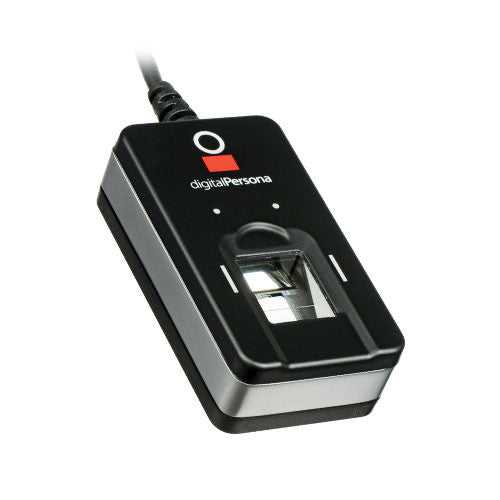

The U.are.U 5160 Fingerprint Reader is a FIPS 201/PIV-certified, touch-style USB peripheral.  This compact, optical fingerprint reader is designed for use in harsh, demanding environments. Rated at IP64, the U.are.U 5160 is sealed against dust and liquids and its hard glass imaging window is highly resistant to chemical and physical damage.

Crossmatch U.are.U 5160 Fingerprint Reader

Ergonomic blue “landing lights” help guide the user for simple, accurate fingerprint scans.  Applications can also use red and green status lights built into the reader to provide immediate feedback without the need for a separate display screen. The U.are.U 5160 Reader can be used with any standards-compatible fingerprint templates extractor or matcher, including the DigitalPersona® FingerJet™ Biometric Engine.

The U.are.U 5160 Fingerprint Reader is designed for use with a full range of Crossmatch™ software including our DigitalPersona U.are.U Software Development Kits, as well as our authentication solution, DigitalPersona Pro Enterprise.  Whether you are a system integrator or an enterprise customer, Crossmatch biometric identity verification solutions provide a natural extension to your security system and applications.

Specification
Supply Voltage:                                 5.0V ±5%
Current—scanning:                        < 120 mA (Typical)
Current—idle mode:                      < 120 mA (Typical)
Current—suspend mode:            < 0.5 mA
Temperature, Operating:            -10 - 60 C
Humidity, Operating:                     20% - 80% non-condensing
Temperature, Storage:                 -10 - 60 C
Humidity, Storage:                           20% - 90% non-condensing
Scan Data:                                             8-bit grayscale
Top Surface:                                         IP64 rated
Interface:                                               USB 2.0 High Speed
Weight:                                                  130 grams
Standards Compliance:                FIPS 201 PIV, RoHS, WEEE UL, USB, WHQL
