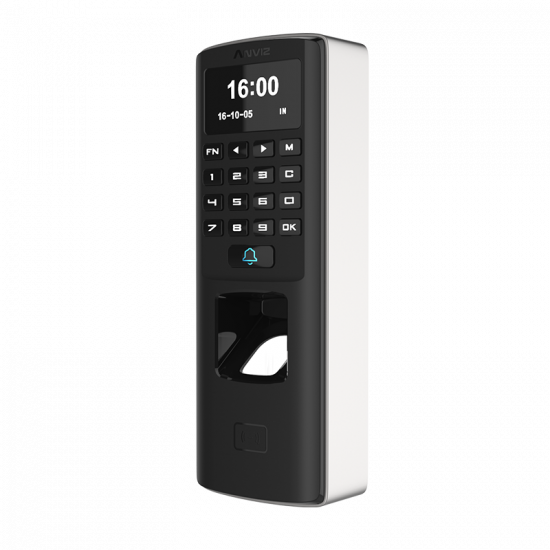

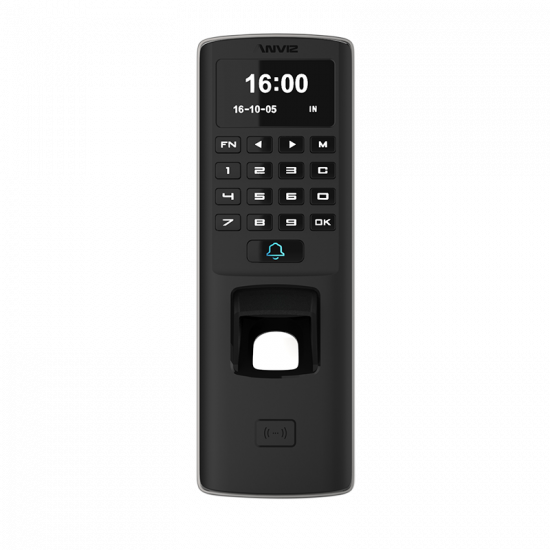

M7 Outdoor Professional Standalone Access Control Terminal
M7 is a new generation outdoor access control device of Anviz. The M7 adopts metal case and IP65 outdoor design with activation technologies in fingerprint sensor for easy for ease of operation. As an access control device, which are designed with PoE communication and access interface separation, The M7 is easy to install and reducing the labor cost. The powerful access control function is noteworthy for M7. Relay output for door control, Wiegand output,time zones and access groups. TCP/IP and RS485.multi communications and the Alarm push function increases area security.
Feature
-
Using Anviz intelligent core algorithm
-
3000 Fingerprints, 3000 Cards, 50000 Records
-
Optical waterproof fingerprint collection device, abrasion resistance, adapt to all kinds of fingerprints
-
Support POE power supply for both device and lock
-
Tamper alarm door magnetic signal interface (known the door open and close state), to support himself back
-
Standard EM the RFID card reader module, optional Mifare module Metal Case, IP65 outdoor solution
Specifications
| Capacity | ||
|---|---|---|
|
Fingerprint Capacity |
3,000 |
|
|
Card Capacity |
3,000 |
|
|
Log Capacity |
50,000 |
|
| interface | ||
|
Comm. |
PoE-TCP/IP，RS485 |
|
|
Relay |
Relay Output (COM, NO, NC ) |
|
|
I/O |
Wiegand Out&In，Door Sensor, Exit Button |
|
| Feature | ||
|
Capacity |
50,000 |
|
|
Activation mode |
Fingerprint Touch activation |
|
|
Identification Mode |
FP, Card, ID+FP, ID+PW, PW+Card, FP+Card |
|
|
Identification Time |
<0.5S |
|
|
Message |
50 |
|
|
Software |
Anviz Crosschex standard software |
|
| Hardware | ||
|
RFID Card |
125KHz EM & 13.56MHz Mifare |
|
|
Tamper Alarm |
Yes |
|
|
PoE |
Standard IEEE802.3af |
|
|
Scan area |
22mm*18mm |
|
|
Resolution |
500 DPI |
|
|
LCD |
128*64 OLED |
|
|
Size (W * H * D) |
58×166×32mm (2.13×6.7×1.61”) |
|
|
Temperature |
Operating Temperature:-30°C~60°C Storage Temperature:-40°C~70°C Best Humidity:20%~90% |
|
|
Operating Voltage |
DC 12V |
|
