Futronic FS10 1″x1″ Fingerprint Scanner

FS10 is Futronic 1″x1″ fingerprint scanner for single-finger scanner market. It was certified by FBI to be compliant with PIV-071006 Image Quality Specification for Single Finger Reader. So it meets the US Federal Information Processing Standard 201(FIPS 201) for Personal Identification Verification (PIV) of Federal Employees and Contractors.

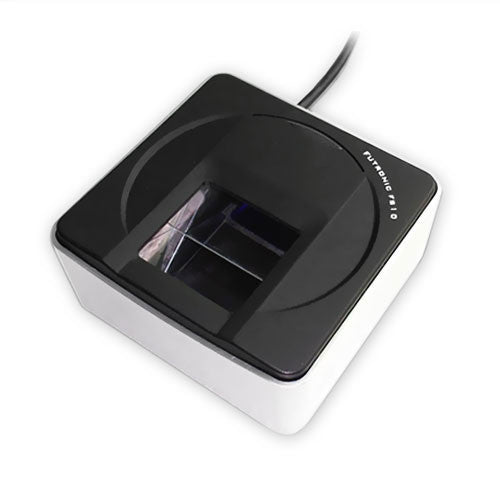

Futronic FS10 1″x1″ Fingerprint Scanner

FS10 uses advanced CMOS sensor technology and precise optical system to meet the rigorous requirement of fingerprint image quality of PIV-071006. Its fingerprint scanning window is crown glass that resists scratches and other stress to ensure long term heavy duty usage. It is a robust but cost effective single finger capture device and ideal for border control, identity card, driver license, election and any type of civilian AFIS application.

A unique serial number is factory-programmed into the USB Device Descriptor of each FS10. So every FS10 is traceable and this is very important for government identity management projects.

Futronic provides Application Programming Interface (API) for FS10 to capture fingerprint image on the following platforms:
    Windows XP/2003, 32 bit and 64 bit.
    Windows Vista/2008/2012, 32 bit and 64 bit.
    Windows 7, 32 bit and 64 bit.
    Windows 8/8.1, 32 bit and 64 bit.
    Linux with kernel 2.4 or higher (for both x86 and ARM9)
    Android 3.1 and higher with USB Host port
    MAC OS(version 10.5 and higher, Intel CPU)

Specification
    Fingerprint scanning window size : 29 x 29.5mm
    Scanning area : 25.4 x 25.4mm (1″x1″)
    Image resolution is 500x500 pixels, 500 DPI
    Image format is 8 bit 256 grayscale
    No interpolation used
    Raw fingerprint image file size is 250K bytes
    USB 2.0 high speed only
    Unique serial number programmed to USB Device Descriptor
    With a 2M standard USB cable
    Small size : 75 x 73 x 36 mm
    Light weight : 200 gram
    Operation temperature: -10 to +55 Degree Celsius
    Relative Humidity : 0-90% non-condensing

Compliant to following standards
    FIPS 201/PIV 071006 Image Quality Specification
    Mobile ID FAP30
    Microsoft WHQL
    FCC and CE
    RoHS

Electrical characteristics
    Light source: Infrared LED
    Supply voltage: DC 4.5-5.5V via USB port
    Power consumption:
        active <900mW(during finger scanning)
        standby <400mW
        sleep mode <2mW
    ESD contact - 8KV no permanent damage
    ESD air discharge - 16KV no permanent damage
